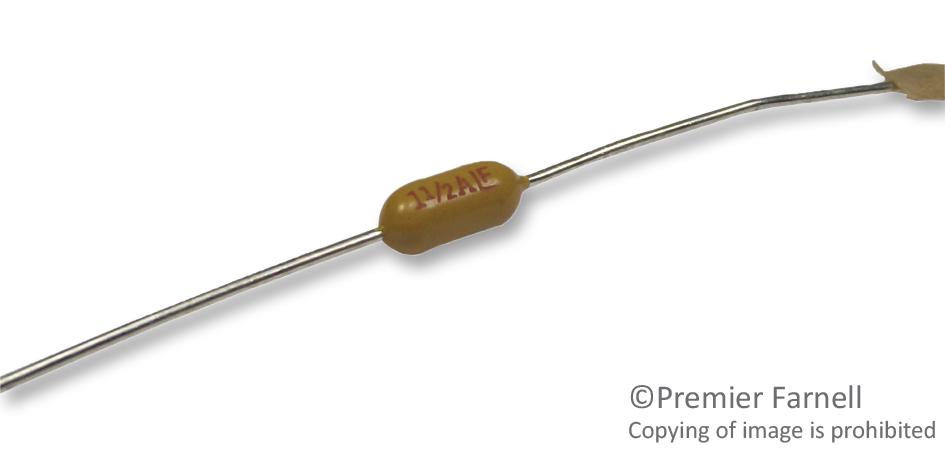

Littelfuse 0473004HAT1L Slo-Blo Fuse
The Littelfuse 473 Series PICO II Slo-Blo fuse is a time-delay fuse engineered for reliable performance in a compact size. It combines the benefits of time-delay characteristics with the proven reliability of Littelfuse's PICO fuses. This fuse is suitable for a wide range of applications, including flat-panel display TVs, medical equipment, LCD monitors, industrial equipment, and lighting systems. It features enhanced inrush withstand, is halogen-free and RoHS compliant, and operates effectively across a wide temperature range. The fuse is available in various current ratings and packaging options to meet diverse application needs.
Littelfuse 0473004HAT1L Slo-Blo Fuse Specifications:
- Ampere Range: 0.375A - 7A
- Opening Time (100% Rating): 4 Hours (Min.)
- Opening Time (200% Rating): 1 Sec. (Min.); 60 Sec. (Max.)
- Opening Time (300% Rating): 0.2 Sec. (Min.); 3 Sec. (Max.)
- Opening Time (800% Rating): 0.02 Sec. (Min.); 0.1 Sec. (Max.)
- Max Voltage: 125V
- Interrupting Rating: Varies by Ampere Rating (see table)
- Resistance: Varies by Ampere Rating (see table)
- Operating Temperature: -55ºC to +125ºC
- Lead Pull Force: 7 lbs (Min.)
- Insulation Resistance: 10,000 ohms minimum at 100 volts
- Resistance to Soldering Heat: 20 sec at 260ºC
- Thermal Shock: -65ºC to 125ºC
- Moisture Resistance: 90–98% RH, Heat (65ºC)
- Agency Approvals: E10480, 29862, PSE
- Materials: Solder Coated Copper wire leads
- Lead Length (T1): 52.4mm (2.062")
- Packaging Code: Y = 4000, P = 2000, M = 1000
- Lead Type: Axial
Buy the 0473004.HAT1L Littelfuse Slo-Blo Fuse | myMectronic
Purchase the Littelfuse 0473004.HAT1L Slo-Blo Fuse securely online and ensure reliable protection for your critical circuits.
