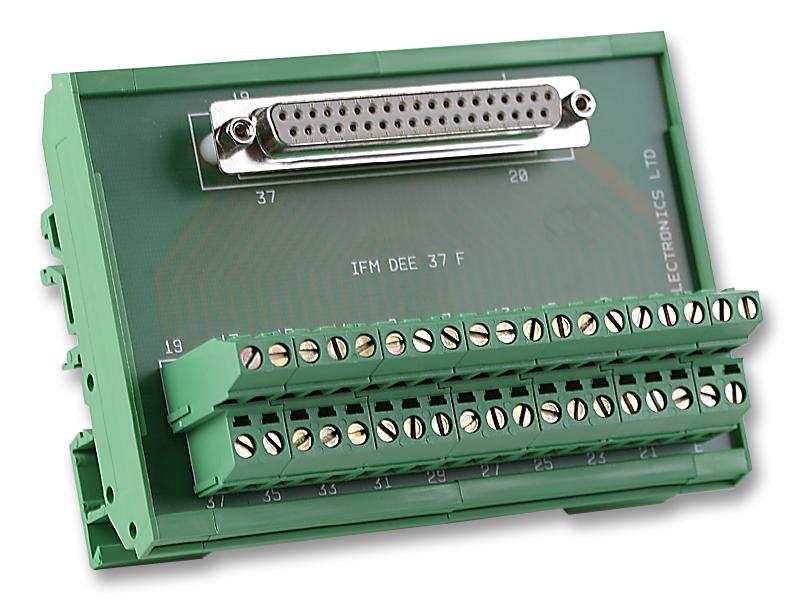

M JAY IFMDEE37F DIN Rail Interface Module
The IFMDEE37F is a DIN rail-mounted interface module designed for connecting discrete wiring to a DEE connector, ideal for low-voltage control and logic equipment in control panels. It features a high-quality DEE connector with screw terminals that support cables up to 4.0mm. This module offers a robust construction with self-extinguishing polyamide housing, measuring 112.5mm in length, and rated for 250V AC and 16A, ensuring safe, reliable connections in industrial automation and control systems. Its design ensures easy installation and durable performance.
M JAY IFMDEE37F DIN Rail Interface Module Specifications:
- Housing Material: Self extinguishing polyamide 6.6 UL 94V-0
- Dimensions: Length 112.5 mm, width 72 mm, DIN rail mounting
- Connector Type: DEE connector with screw terminals
- Cable Capacity: Accepts cables up to 4.0mm
- Voltage Rating: 250 V AC
- Current Rating: 16A
- Resistance: 15 m Ohms
- Insulation Resistance: 10^10 Ohms
- PCB Material: FR4 1.6mm
- Max PCB Voltage: 50 V DC
- Max PCB Current: 100 mA
- Housing Width: 72 mm
- Standards: UL 94V-0 rated
- Application: Control panels, automation systems
Buy the Buy M-Jay Electronics IFMDEE37F Part Number 112.5mm DIN Rail Interface Module Online
Purchase the M-Jay Electronics DIN Rail Interface Module online today. Designed for seamless connection of control wiring in automation systems, it features a robust polyamide housing and high-quality DEE connector with screw terminals. Rated at 250V AC and 16A, it supports cables up to 4.0mm for flexible wiring options. Easy to install on standard DIN rails, this module offers reliable performance in control panel applications, ensuring safety, durability, and ease of maintenance in industrial environments.
Get M-Jay Electronics IFMDEE37F today—designed for durable, safe, and reliable low-voltage control wiring in industrial automation.
Frequently Asked Questions
Where can I buy M JAY IFMDEE37F?
You can click on the BUY or RFQ button to purchase IFMDEE37F from an authorized M JAY distributor.
How do I troubleshoot issues or seek technical support for part IFMDEE37F?
You can download the IFMDEE37F datasheet or visit the M JAY website for support.
Who is the manufacturer of IFMDEE37F?
M JAY
