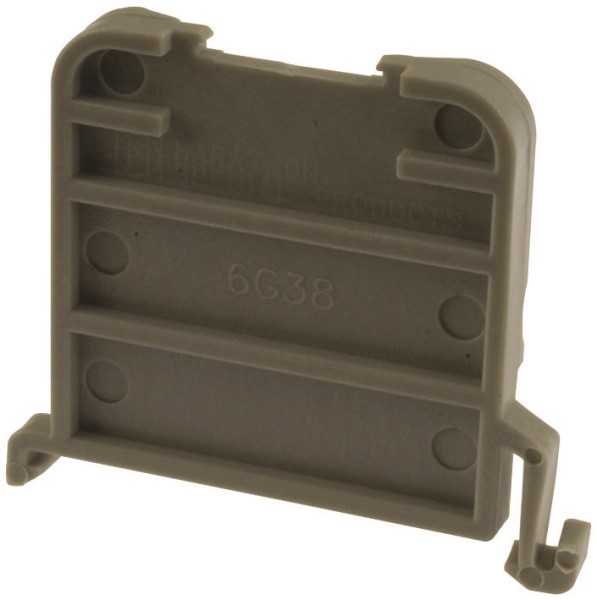

MARATHON/KULKA 6G38EDIN Sectional Terminal Block
Marathon's 6G38EDIN sectional terminal blocks offer a modular solution for electrical termination where circuit flexibility is essential. These blocks are constructed from individually molded units that can be assembled to create the precise number of circuits needed. Designed to fit on a standard 35mm DIN rail, they provide a versatile mounting option. The blocks are suitable for a range of applications, including service equipment, commercial appliances, and general industrial controls. They accept single or multiple wire sizes, making them adaptable to various wiring configurations.
MARATHON/KULKA 6G38EDIN Sectional Terminal Block Specifications:
- Voltage Ratings: Based on spacing between electrically conductive parts
- Class A Applications: Service equipment (deadfront switchboards, panel boards, service entrance devices)
- Class B Applications: Commercial appliances (business equipment, electronic data processing equipment)
- Class C Applications: General industrial and machine tool controls (UL 508)
- Spacing Requirements (Class A): 51-150V: .500/.750; 151-300V: .750/1.250; 301-600V: 1.000/2.000 (in inches)
- Spacing Requirements (Class B): .063/.094/.375/.063/.094/.500 (in inches)
- Spacing Requirements (Class C): .125/.250/.375/.250/.375/.500 (in inches)
- Applications: Electrical termination of wire where flexibility of circuit design is necessary
- Wire Sizes: Accepts single or multiple wire sizes for tubular screw and clamp styles
- Material - Base: Gray Thermoplastic, 125 °C (UL RTI)
- Material - Tubular Screw Connector: Copper, Tin Plated
- Material - Screw: #10-32 Steel, Nickel Plated
- Wire Termination Torque: 16 in-lb
- Amperage: 50 Amps (40 Amps CSA)
- UL Recognized File No.: XCFR2.E62806
- CSA Certified File No.: LR19766
- IP Rating: IP20 Touchproof
- Wire Ranges: Single and Multiple Wire Combinations: Stranded CU Solid CU (1) #8 - #18 AWG, (1) #10 - #16 AWG, (1-3) #12 AWG, (1-4) #14 AWG, (1-4) #14 or #16 AWG
