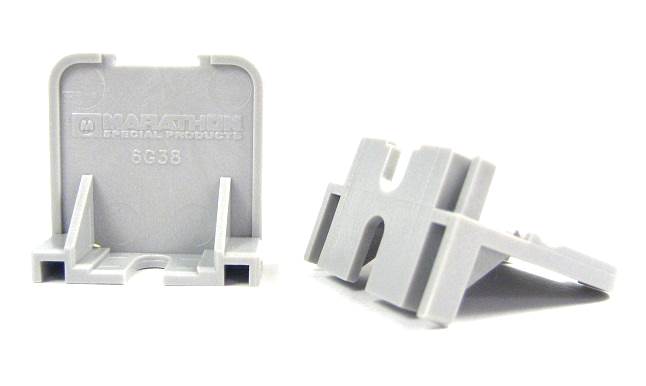

MARATHON/KULKA 6G38EF Sectional Channel Terminal Block
The Marathon/Kulka 6G38EF is a versatile sectional terminal block suitable for a wide range of industrial applications, including control panels, power distribution systems, and equipment enclosures. Its sectional design allows for flexible configuration to accommodate varying circuit requirements. Constructed with a durable gray thermoplastic base and tin-plated copper connectors, the 6G38EF provides reliable electrical connections and is designed to meet IP20 touchproof requirements. The block is UL Recognized and CSA Certified, ensuring adherence to stringent safety standards. Available in channel, flat, and DIN mount configurations, the 6G38EF offers adaptability for diverse installation scenarios.
MARATHON/KULKA 6G38EF Sectional Channel Terminal Block Specifications:
- Voltage Rating: 600 Volts AC/DC
- Current Rating: 50 Amps (40 Amps CSA)
- IP Rating: IP20
- UL Recognition: UL Recognized File No. XCFR2.E62806
- CSA Certification: CSA Certified File No. LR19766
- RoHS Compliant: Yes
- Base Material: Gray Thermoplastic (125 °C UL RTI)
- Connector Material: Copper, Tin Plated
- Screw Material: #10-32 Steel, Nickel Plated
- Termination Torque: 16 in-lb
- Wire Ranges: {'Single/Multiple Wire Combinations': '#8 - #18 AWG (Stranded/Solid CU)', '#10-#22 AWG (Stranded/Solid CU)': '(1) #10-#22 AWG', '#10 - #16 AWG': '(1) #10 - #16 AWG', '#12 AWG': '(1-3) #12 AWG', '#14 AWG': '(1-4) #14 AWG', '#16 AWG': '(1-4) #16 or #16 AWG', '#18 or #22 AWG': '(1-5) #18 or #22 AWG'}
- Mounting Options: Channel, Flat, DIN
