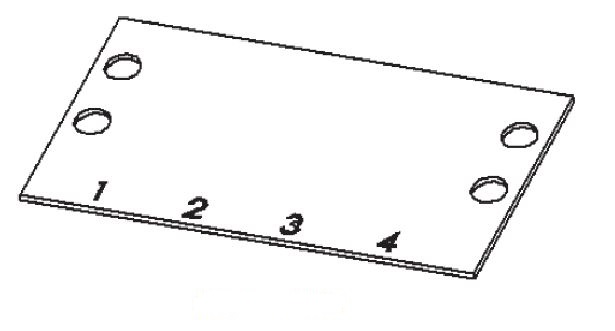

MARATHON/KULKA CW21001A Terminal Block Cover
MARATHON/KULKA's CW210-01A is a terminal block cover designed to provide protection and circuit identification for terminal blocks. Constructed from durable white vinyl, the cover is equipped with nylon spring clips for secure mounting. Markings, printed on the top, bottom, or center line, facilitate easy circuit identification. Available in a range of print styles (01A, 01B, 01C, 01D, 07A, 07B, 07C, 07D) and compatible with various series, this accessory enhances the functionality and organization of terminal block systems in industrial and commercial applications.
MARATHON/KULKA CW21001A Terminal Block Cover Specifications:
- Material: White Vinyl
- Thickness: 0.03 inch
- Mounting: Two Nylon Spring Clips
- Marking: Printed on Center Line (Letters/Numbers)
- Printing Character Size: 1/8 Inch
- Series Compatibility: 100/670A GP, 600 GP, 600A GP, 670ARZ, 200/671 GP, 601 GP, 621 RZ, 671 RZ, 300/672 GP, 602 GP, 672 RZ
- A Dimension: {'1': '0.91', '2': '1.29', '3': '1.66', '4': '2.04', '5': '2.41', '6': '2.79', '7': '3.16', '8': '3.56', '9': '3.91', '10': '4.29', '11': '4.66', '12': '5.04', '13': '5.41', '14': '5.79', '15': '6.16', '16': '6.54', '17': '6.91', '18': '7.29', '19': '7.66', '20': '8.04', '21': '8.41', '22': '8.79', '23': '9.16', '24': '9.54', '25': '9.91', '26': '10.29', '27': '10.66', '28': '11.04', '29': '11.41', '30': '11.79', '31': '12.16', '32': '12.54', '33': '12.91', '34': '13.29', '35': '13.66', '36': '14.04'}
- B Dimension: {'1': '0.55', '2': '0.93', '3': '1.30', '4': '1.68', '5': '2.05', '6': '2.43', '7': '2.80', '8': '3.20', '9': '3.55', '10': '3.93', '11': '4.30', '12': '4.68', '13': '5.05', '14': '5.43', '15': '5.80', '16': '6.18', '17': '6.55', '18': '6.93', '19': '7.30', '20': '7.68', '21': '8.05', '22': '8.43', '23': '8.80', '24': '9.18', '25': '9.55', '26': '9.93', '27': '10.30', '28': '10.68', '29': '11.05', '30': '11.43', '31': '11.80', '32': '12.18', '33': '12.55', '34': '12.93', '35': '13.30', '36': '13.68'}
Buy the CW210-01A MARATHON/KULKA Terminal Block Cover | myMectronic
Secure your MARATHON/KULKA CW210-01A terminal block cover with our trusted online platform.
Buy Now
Frequently Asked Questions
Where can I buy MARATHON/KULKA CW21001A?
You can click on the BUY or RFQ button to purchase CW21001A from an authorized MARATHON/KULKA distributor.
How do I troubleshoot issues or seek technical support for part CW21001A?
You can download the CW21001A datasheet or visit the MARATHON/KULKA website for support.
Who is the manufacturer of CW21001A?
MARATHON/KULKA
