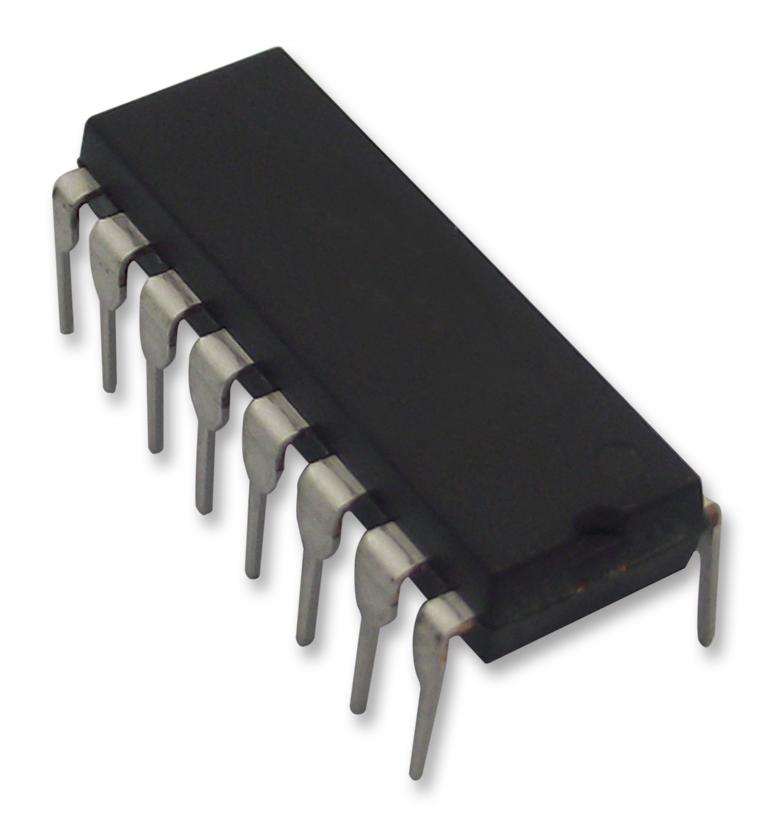

MAXIM INTEGRATED / ANALOG DEVICES DG403CJ Analog Switch
The DG403CJ+ from Maxim Integrated Products is a dual high-speed, low on-resistance SPDT analog switch inside a 16-pin DIP package. It offers fast switching—max 150 ns on, 100 ns off—while consuming only 35 µW power. Fabricated with a 44V silicon gate process, it features low charge injection of 15 pC, minimal off leakage current under 5 nA at +85°C, and supports rail-to-rail signals. Compatible with TTL and CMOS logic, it operates at supply voltages from 10V to 30V (±4.5V to ±20V). Its typical drain-source on-resistance is 45Ω, with channel resistance match within 2Ω and flatness within 3Ω. It is ideal for sample-and-hold circuits, guidance systems, communication, and military electronics.
MAXIM INTEGRATED / ANALOG DEVICES DG403CJ Analog Switch Specifications:
- Type: Dual SPDT analog switches
- Number of channels: 2
- Package: 16-pin DIP
- Supply Voltage Range: 10V to 30V (±4.5V to ±20V)
- Max. Switch Time: 150 ns on, 100 ns off
- Power Consumption: 35 µW max
- On-Resistance: 45Ω typical at 25°C
- Resistance Match: within 2Ω
- Resistance Flatness: within 3Ω
- Charge Injection: 15 pC max
- Off Leakage Current: less than 5 nA at +85°C
- Signal Range: -15V to +15V
- Off Isolation: 72 dB at 1 MHz
- Crosstalk: 90 dB at 1 MHz
- Break-before-make delay: 20 ns
- Operating Temperature: -40°C to +85°C
- Features: Rail-to-rail signal handling, TTL/CMOS compatibility, low charge injection, low on-resistance, high-speed switching
