MAXIM INTEGRATED / ANALOG DEVICES DS1090U2V spread-spectrum oscillator
The DS1090U2V is a low-cost, spread-spectrum oscillator designed for EMI reduction in switched-mode power supplies, servers, printers, and embedded microcontrollers. It features a programmable output frequency from 125kHz to 8MHz, adjustable dither percentage up to 8%, and various dither rates. The device includes a master oscillator, factory-programmed prescaler, and a dither generator, operating within a voltage range of 3.0V to 5.5V and temperature from -40°C to +85°C. Its precision and spread-spectrum capabilities make it suitable for reducing radiated emissions in industrial applications.
MAXIM INTEGRATED / ANALOG DEVICES DS1090U2V spread-spectrum oscillator Specifications:
- Output Frequency Range: 125kHz to 8MHz
- Dither Percentage: 0% to 8%
- Dither Rate Divisor: 512, 1024, 2048, 4096
- Supply Voltage: 3.0V to 5.5V
- Operating Temperature: -40°C to +85°C
- Power-up Time: 0.1 to 0.5 ms
- Output Duty Cycle: 45% to 55%
- Output Rise/Fall Time: 20 ns (at 15 pF load)
- Master Oscillator Frequency: 4.0 to 8.0 MHz
- Prescaler Range: 1, 2, 4, 8, 16, 32
- Physical Package: SOP-8
- Absolute Max Ratings Voltage Range on Vcc: -0.5V to +6.0V

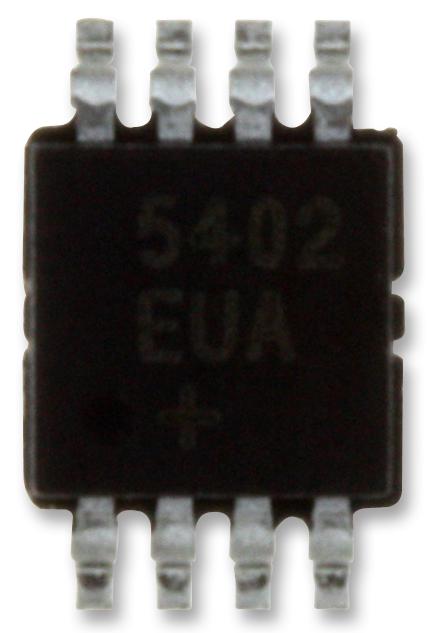

Buy the Maxim DS1090U2V – Reliable Spread-Spectrum Oscillator for Industrial Applications
Experience advanced EMI reduction with the Maxim DS1090U2V spread-spectrum oscillator. Featuring programmable frequency from 125kHz to 8MHz, adjustable dither percentage up to 8%, and a robust operating voltage of 3.0V to 5.5V. Its spread-spectrum technology minimizes radiated emissions, making it ideal for industrial power supplies, servers, and embedded microcontrollers. Easy to integrate with a compact SOP-8 package, this oscillator ensures precise timing and reduced electromagnetic interference across a wide temperature range for reliable industrial performance.
Buy Maxim DS1090U2V now and experience unmatched reliability and EMI reduction in industrial power supplies and embedded systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DS1090U2V?
You can click on the BUY or RFQ button to purchase DS1090U2V from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DS1090U2V?
You can download the DS1090U2V datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DS1090U2V?
MAXIM INTEGRATED / ANALOG DEVICES
