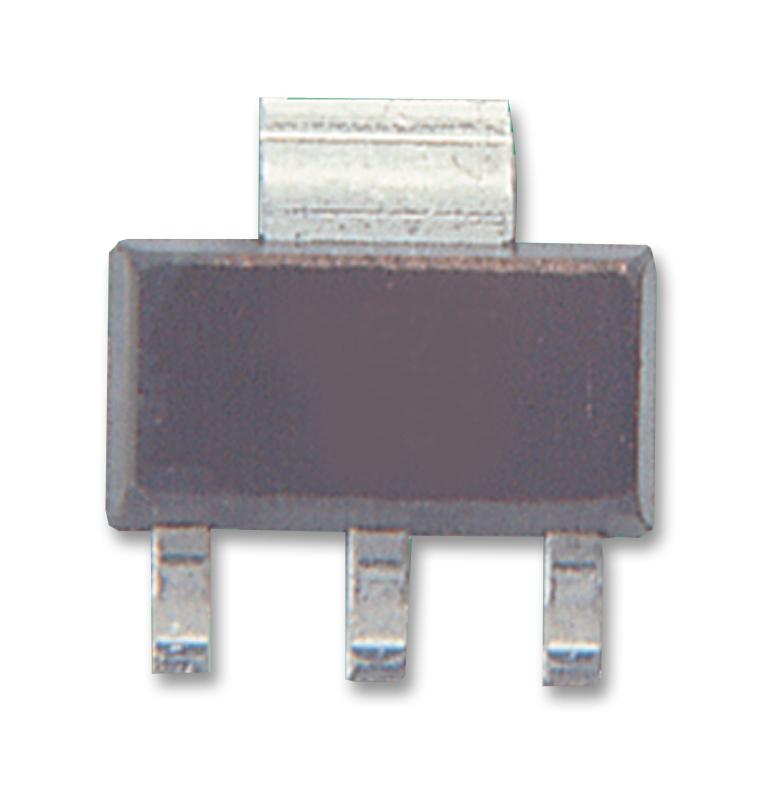

MAXIM INTEGRATED / ANALOG DEVICES DS1233Z15 Microprocessor Reset Module
The DS1233Z-15+ is a 5V EconoReset monitor in a compact 4-pin SOT-223 package designed for reliable microprocessor system control. It monitors power supply status and pushbutton inputs, generating a reset signal when VCC drops below 4.125V, and holds active for approximately 350ms after power returns to allow system stabilization. With a supply voltage range of 1.2V to 5.5V, operating temperature from -40°C to 85°C, and low current consumption of 50µA, it reduces the need for extra components, enhances system reliability, and debounces pushbutton resets for accurate control.
MAXIM INTEGRATED / ANALOG DEVICES DS1233Z15 Microprocessor Reset Module Specifications:
- Supply Voltage: 1.2V to 5.5V
- Trip Point: 4.125V (Vcc)
- Operating Temperature: -40°C to +85°C
- Reset Active Time: 350ms
- Output Capacitance: 10pF
- Internal Pull-Up Resistor: 5KΩ
- Operating Current: 50µA
- Package: SOT-223
- Temperature Compensation: Yes
- Vcc Drop Detection: Yes
- Pushbutton Debounce: Yes, 350ms
- Power Failure Monitoring: Yes
- External Reset Override: Yes
