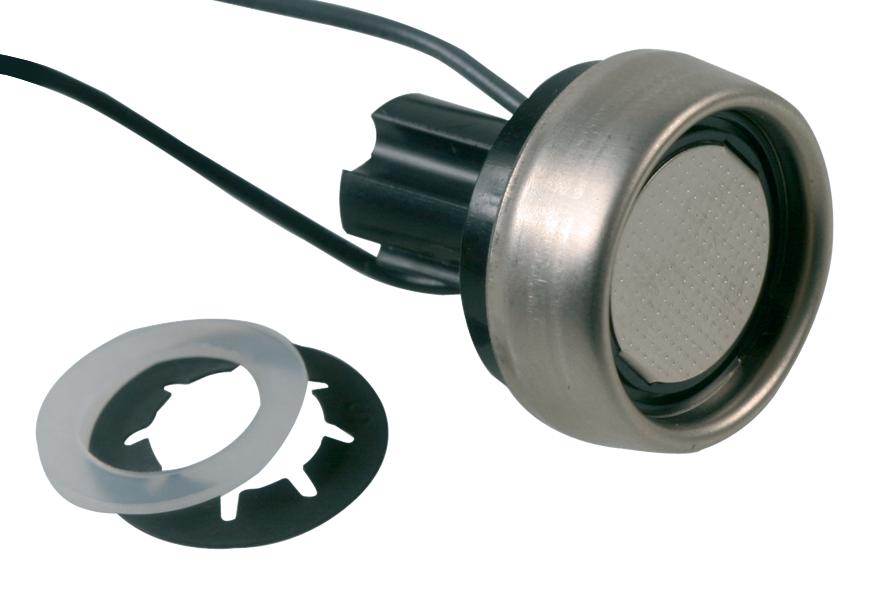

The DS9092+ is an iButton panel mount probe (solid face). It is available with flat faceplate that provides the electrical contact necessary for transfer of data to and from the DS19xx family of iButtons. The round probe shape provides a self aligning interface that readily matches the circular rim of the iButton’s MicroCan package. Metal contacts resist wear and are easy to keep clean. The centre contact of the standard reader has no moving parts and this type of probe is best suited for designs where the iButton is brought into contact with the reader. This panel mount probe is fastened behind the panel with a push on type spring nut. The two 15cm, 22AWG wires are provided for easy connection to the system microcontroller. The DS9092+ is a suitable tool for hand held devices reading iButtons.




Simple, low cost metal stampings form a read/write probe for the iButton family

Probe guides the entry of the iButton

IButton slides over the surface to self clean contacts

Accessible shallow probe cavity simplifies removal of debris such as mud

Flexible design supports panel mount

Bright tarnish resistant metal surface provides millions of operations

Panel mount probe is prewired for easy installation





Applications


Embedded Design & Development
