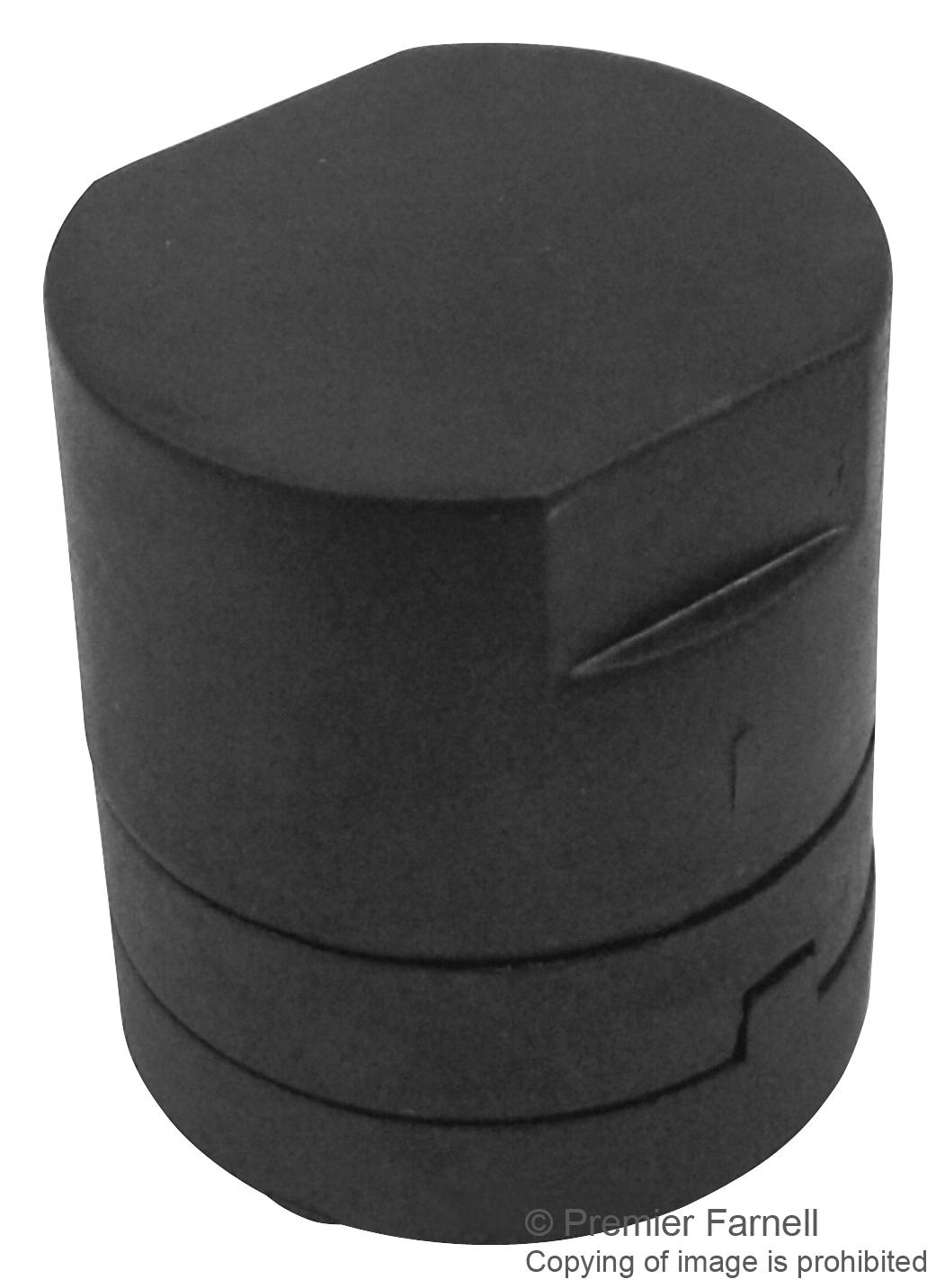

MAXIM INTEGRATED / ANALOG DEVICES DS9107 iButton Temperature Capsule
The DS9107+ is a protective capsule designed for iButton temperature loggers, such as the DS1921 and DS1922 series. It features a durable enclosure that shields the device from moisture, solvents, and pressure. The capsule comprises a base with a cavity to house the iButton, a screw-in plug with an O-ring for sealing, and a top that mounts the capsule to a cable using two stainless steel screws. Made from polyphenylene sulphide (PPS), the materials offer excellent mechanical strength, flame resistance, and chemical resistance. The silicone O-ring ensures a secure seal and withstands various environmental conditions. The assembly weighs approximately 18.4 grams, with mounting screws crafted from type 303 stainless steel.
MAXIM INTEGRATED / ANALOG DEVICES DS9107 iButton Temperature Capsule Specifications:
- Material: Polyphenylene sulfide (PPS) with black flat finish, electrically non-conductive
- O-Ring Material: Silicone, FDA approved, orange color
- Screws: Type 303 stainless steel, flat-head Phillips countersunk, M2.3, 9mm length
- Weight: 18.4 grams
- Temperature Range: -40°C to +140°C
- Maximum Torque for Plug: 36.5 Nm (26.9 ft-lbs)
- Number of Autoclave Cycles: Up to 121°C at 205 kPa
- Thermal Response Time: Approx. 150 seconds
- Dimensions: See technical drawing in millimeters
- Ingress Protection Rating: IP68
- Max Open/Close Cycles: 500
- Electrical Insulation: Yes, made of non-conductive PPS
Buy the Buy MAXIM Integrated DS9107 Protective Capsule iButton Part Number DS9107 Online
Order the MAXIM DS9107 iButton Capsule online today and ensure your temperature loggers are protected against moisture, chemicals, and pressure. Designed from durable PPS material with an IP68 rating, this capsule offers excellent chemical and flame resistance for demanding applications such as autoclave sterilization, seawater profiling, and scientific research. It features a secure seal with silicone O-rings and stainless steel screws, providing long-term reliability and environmental protection. Perfect for rugged temperature monitoring in industrial, scientific, and industrial settings, ensuring accurate data collection and safe operation.
Buy MAXIM Integrated DS9107 now and experience reliable temperature monitoring in rugged environments with IP68 sealing and chemical resistance.
