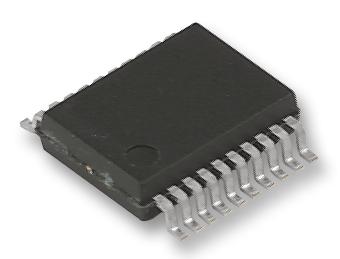

The MAX148BCAP+ is a +2.7V to +5.25V, low power, 8-channel, serial 10bit analogue to digital converter (ADC) in 20 pin SSOP package. This ADC use a successive-approximation conversion technique and input track/hold (T/H) circuitry to convert an analogue signal to a 10bit digital output at sample rate of 133Ksps. A flexible serial interface provides easy interface to microprocessors (μPs), device provide a hard-wired SHDN(complementary) pin and a software-selectable power-down and can be programmed to automatically shut down at the end of conversion. This device is used in data acquisition, pen digitizers and process control.




Operating temperature range from 0°C to 70°C

8-channel single ended or 4-channel differential inputs

SPI/QSPI/MICROWIRE/TMS320 compatible 4-wire serial interface

Software configurable unipolar/bipolar & single-ended/differential operation

Low power of 1.2mA (133Ksps, 3V supply), 54µA (1Ksps, 3V supply) and 1µA (power-down mode)

Maximum relative accuracy (INL) is ±1.0LSB, maximum differential nonlinearity (DNL) is ±1LSB

Maximum gain error is ±2LSB

Small signal bandwidth is 2.25MHz at -3dB roll-off, total harmonic distortion is -70dB

Requires an external reference

Use either internal clock or an external serial-interface clock





Applications


Signal Processing,

Industrial,

Portable Devices,

Medical
