MAXIM INTEGRATED / ANALOG DEVICES MAX16055FAUB Voltage Supervisory IC
The MAX16055 is a compact hex voltage supervisory circuit designed to monitor up to six system voltages with factory-set and adjustable thresholds, ensuring system reliability by asserting a reset when supply voltages fall below set levels. It features precise voltage thresholds for common voltages like 3.3V, 3.0V, and down to 0.5V, with a reliable open-drain reset output and a reset timeout period of at least 140ms. Ideal for applications in networking, industrial, telecom, and computing systems, the device operates over -40°C to +125°C and is housed in a small 10-pin uMAX package.
MAXIM INTEGRATED / ANALOG DEVICES MAX16055FAUB Voltage Supervisory IC Specifications:
- Operating Voltage Range: 1.0V to 5.5V
- Reset Thresholds: 3.3V, 3.0V, 2.5V, 1.8V, 1.5V, 1.2V, 1.1V, 1.0V, 0.9V
- Adjustable Thresholds: down to 0.5V with 1.5% accuracy
- Reset Output: Open-drain, weak pull-up (70uA typical), Asserted low when supply drops below threshold
- Reset Timeout Period: Minimum 140ms
- Manual Reset Input: Active-low with internal 20kΩ pull-up
- Input Tolerance Selection: 5% or 10% below nominal
- Hysteresis: 0.3% typical for noise immunity
- Operating Temperature Range: -40°C to +125°C
- Package: 10-pin uMAX (3mm x 3mm)
- Features: Short transient immunity, built-in voltage references, precise comparator circuitry

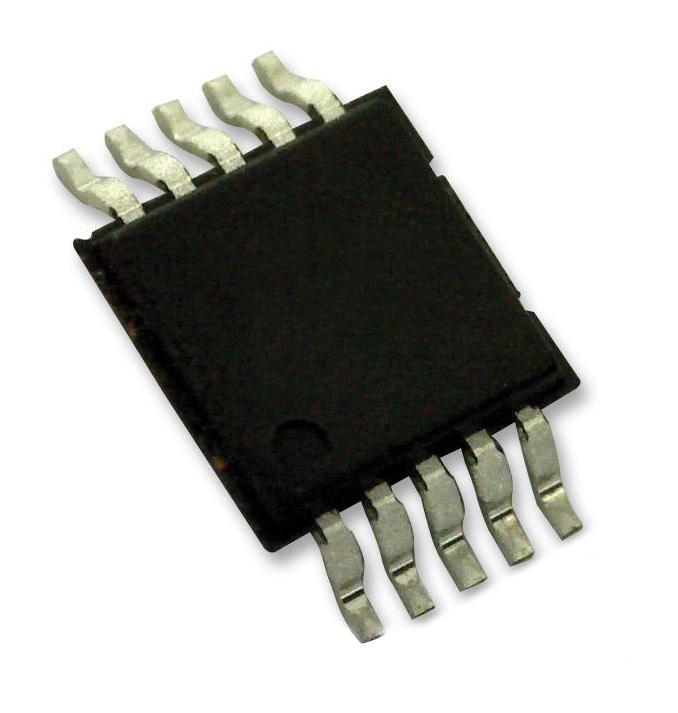

Buy the Buy Maxim MAX16055FAUB Ultra-Small Hex Voltage Supervisory IC Online
Purchase the Maxim MAX16055FAUB online today and ensure your system's power integrity with this reliable, miniature hex voltage supervisory circuit. This device monitors up to six voltages with factory-fixed and adjustable thresholds, providing a precise and dependable reset signal critical for complex electronic systems in networking, industrial, telecom, and computing environments. Its small 10-pin uMAX package makes integration straightforward, while features like short transient immunity and a 140ms reset timeout period enhance system stability and safety. Secure yours now for optimal system performance and reliability.
Get Maxim MAX16055FAUB today—built for precision and long-lasting reliability in system monitoring applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX16055FAUB?
You can click on the BUY or RFQ button to purchase MAX16055FAUB from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX16055FAUB?
You can download the MAX16055FAUB datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX16055FAUB?
MAXIM INTEGRATED / ANALOG DEVICES
