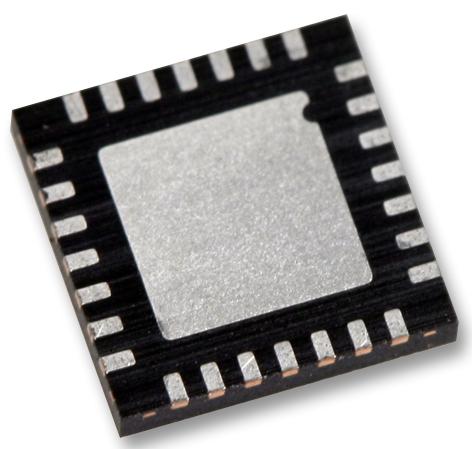

MAXIM INTEGRATED / ANALOG DEVICES MAX16932ATIRV Dual Buck Controller
The MAX16932/MAX16933 are automotive-grade dual synchronous step-down controllers operating from 3.5V to 42V, with ultralow 20μA quiescent current in skip mode. They provide two independently controlled outputs, each configurable between 1V and 10V and capable of delivering up to 10A. Features include high switching frequencies up to 2.2MHz, spread spectrum EMI reduction, internal power-OK monitors, overvoltage/undervoltage lockout, thermal shutdown, and flexible synchronization options. Suitable for automotive, POL, distributed power, and radio head unit applications, these devices come in thermally enhanced 28-pin TQFN packages, capable of operating over -40°C to +125°C temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX16932ATIRV Dual Buck Controller Specifications:
- Input Voltage Range: 3.5V to 42V
- Output Voltage Range: 1V to 10V adjustable
- Output Current: Up to 10A per channel
- Switching Frequency: 200kHz to 2.2MHz (configurable with resistor)
- Quiescent Current: 20μA in skip mode
- Peak Efficiency: High frequency operation reduces external components
- Protection: Overvoltage, undervoltage lockout, thermal shutdown, cycle-by-cycle current limit
- EMI Reduction: Spread spectrum and synchronization options
- Package: 28-pin TQFN-EP, with exposed pad for heat dissipation
- Operating Temperature: -40°C to +125°C
- Application: Automotive power supplies, POL modules, radio units, distributed DC power
Buy the Buy MAXIM Integrated MAX16932ATIRV Part Number 16932 Online
Purchase the MAXIM Integrated MAX16932ATIRV today to benefit from high-voltage, dual synchronous buck control in space-constrained automotive and industrial applications. Its wide input range up to 42V, adjustable output from 1V to 10V at 10A per channel, and ultra-low quiescent current of only 20μA in skip mode make it ideal for efficient, space-saving designs. Features like spread spectrum EMI reduction, accurate monitoring, overvoltage and undervoltage lockout, thermal shutdown, and flexible synchronization ensure robust system operation. Built in a thermally enhanced 28-pin TQFN package, this device guarantees reliable performance across -40°C to +125°C environments, perfect for demanding automotive and industrial systems.
Order your MAXIM Integrated MAX16932ATIRV dual buck controller today and enhance your automotive, power distribution, or radio head unit project with reliable efficiency.
