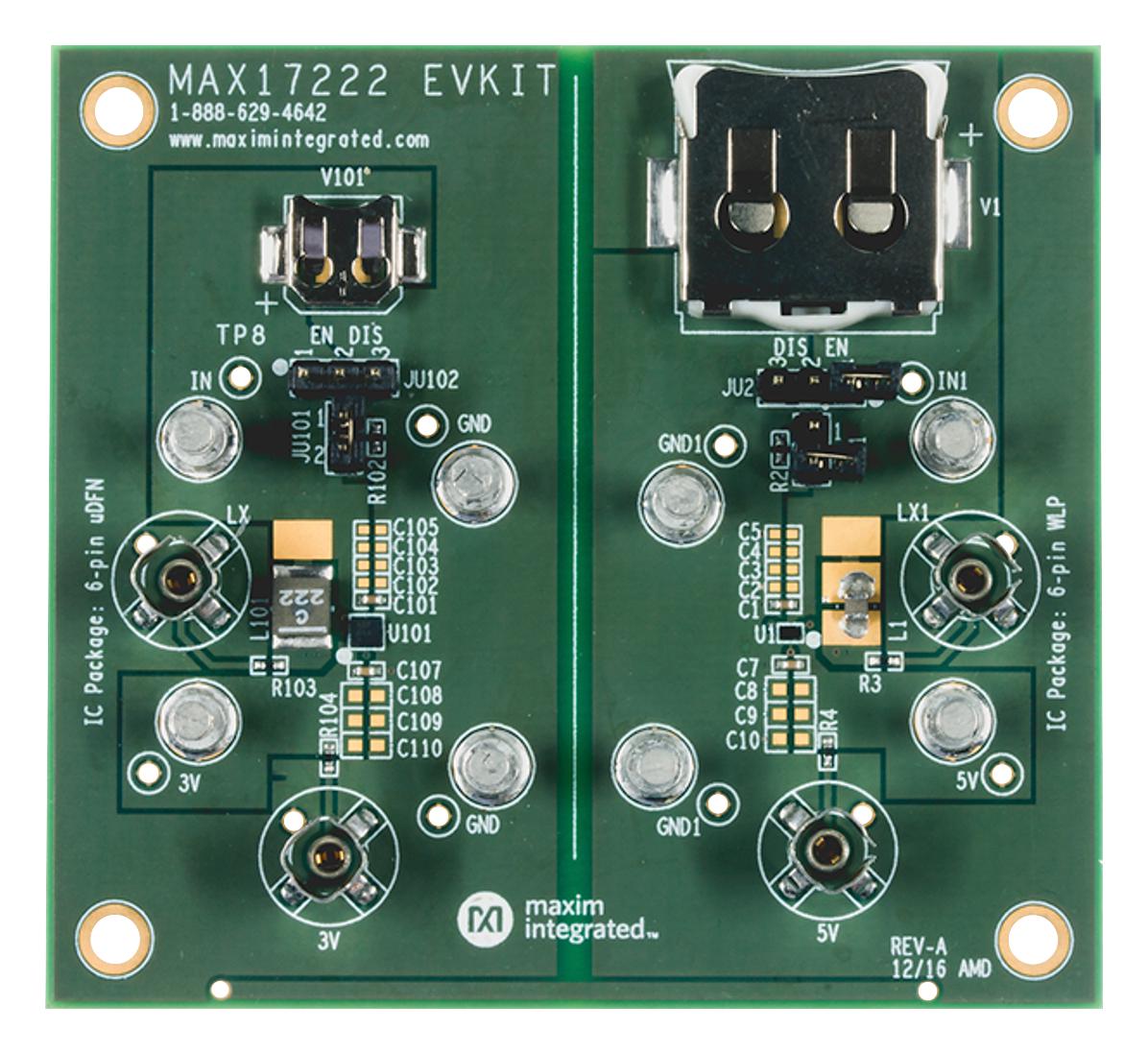

The MAX17222EVKIT# from Maxim Integrated Products is a MAX17222 evaluation kit (EV Kit). This kit evaluates the MAX17220 - MAX17225 IC family of ultra-low quiescent current step-up DC-DC converters. The EV kit features two independent circuits to evaluate two different IC packages of the MAX17220 - MAX17225 family. Both circuits on the EV kit operate over an input range of 400mV to 5.5V, depending on load with 0.88V typical start-up with 3Kohm load. Each circuit provides resistor-configurable output voltages from 1.8V to 5V in 100mV/step. The EV kit comes with the MAX17222ELT+ and MAX17225ENT+ installed.




Evaluates the MAX17220–MAX17225 IC family in a 6 pin µDFN

Evaluates the MAX17220–MAX17225 IC family in a 6-pin Wafer-Level Package (WLP)

Up to 100mA/225mA/425mA output current

Proven 2-layer 1oz copper PCB layout

Demonstrates compact solution size

Fully assemble and tested
