MAXIM INTEGRATED / ANALOG DEVICES MAX1735EUK30T Negative Low-Dropout Regulator
The MAX1735EUK30+T is a 200mA low dropout linear voltage regulator in a 5-pin SOT-23 package, designed for negative output voltage regulation. It operates from an input voltage range of -2.5V to -6.5V and provides a stable, high-accuracy output with a tolerance of ±1%. The output voltage can be preset or adjusted from -1.25V to -5.5V using an external resistor divider. The device incorporates an internal N-channel MOSFET, resulting in a low quiescent current of approximately 85µA, making it ideal for battery-powered portable devices such as PDAs, mobile phones, cordless phones, and wireless data modems. It features dual mode operation for a fixed -3V output or an adjustable voltage, along with a low power shutdown mode at 1nA, short circuit protection, and thermal overload protection. The regulator exhibits a power supply rejection ratio (PSRR) of 60dB at 100Hz. It is stable with a 1µF output capacitor and can operate within an ambient temperature range of -40°C to 85°C. Typical applications include power management for disk drives, modems, instrumentation amplifiers, mobile and cordless telephones, PCMCIA cards, and wireless data modems.
MAXIM INTEGRATED / ANALOG DEVICES MAX1735EUK30T Negative Low-Dropout Regulator Specifications:
- Input Voltage Range: -2.5V to -6.5V
- Output Voltage: -1.25V to -5.5V (adjustable), preset options: -2.5V, -3.0V, -5.0V
- Maximum Output Current: 200mA
- Dropout Voltage: 80mV at 200mA
- Quiescent Current: approximately 85µA
- Shutdown Mode Current: 1nA
- Voltage Regulation Accuracy: ±1%
- Power Supply Rejection Ratio: 60dB at 100Hz
- Output Capacitor: 1µF (stable)
- Thermal Overload and Short Circuit Protection
- Operating Temperature Range: -40°C to 85°C
- Package: 5-pin SOT-23

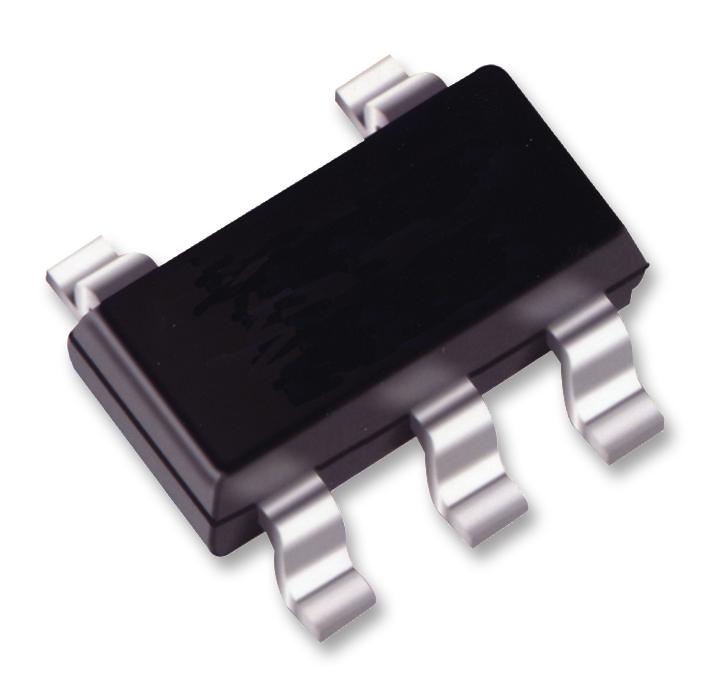

Buy the Buy MAXIM MAX1735EUK30T Negative Low Dropout Linear Regulator Online
