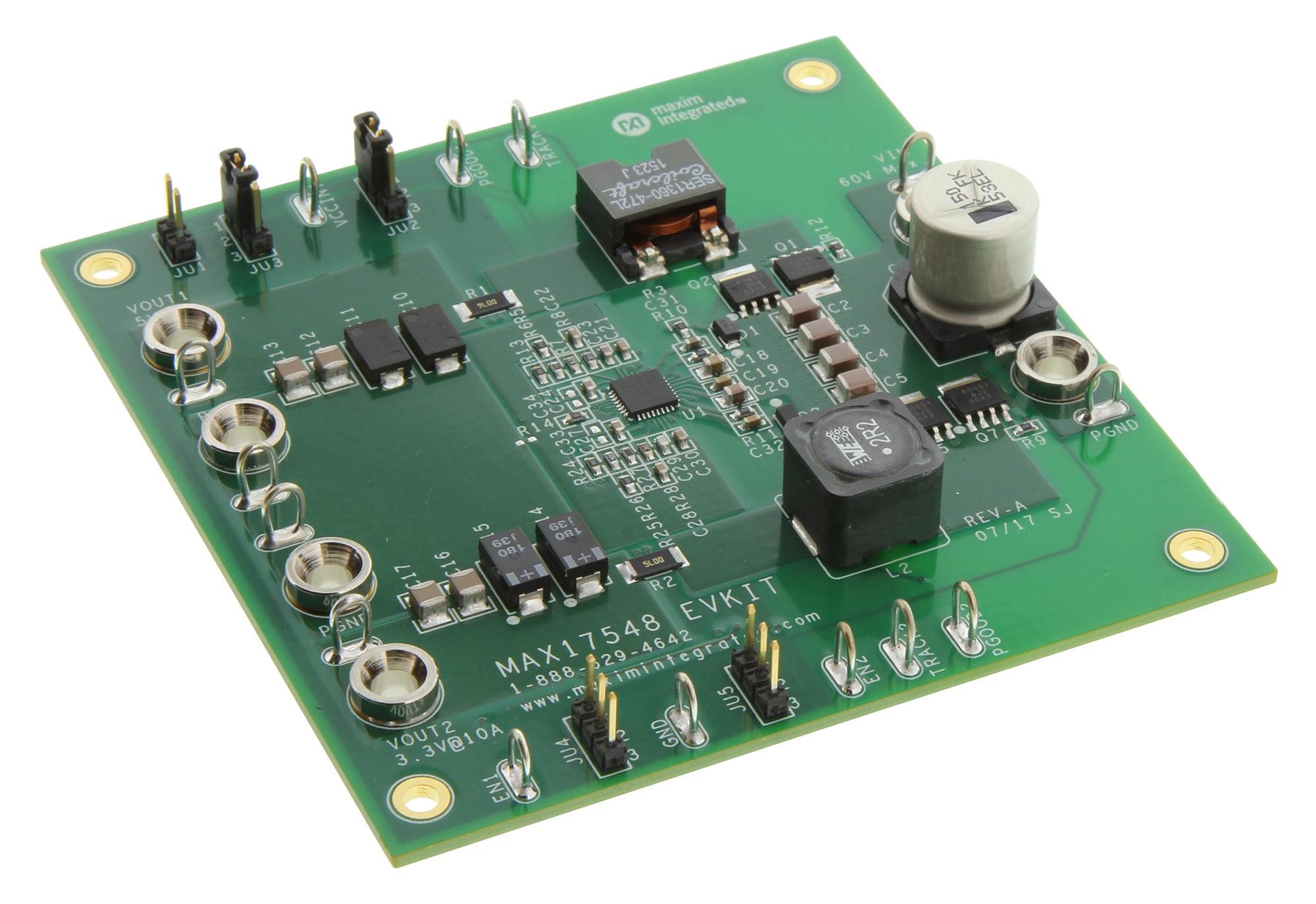

The MAX17548EVKIT# from Maxim Integrated Products is an evaluation kit (EV kit) for MAX17548. It provides a proven design to evaluate the MAX17548 wide 4.5V to 42V input, dual-output, synchronous step down DC-DC controller. The EV kit provides 5V/5A and 3.3V/10A at the outputs from a 6V to 42V input supply. The switching frequency of the EV kit is preset to 350KHz for optimal efficiency and component size. The EV kit features adjustable input undervoltage-lockout and soft-start time, selectable PWM/DCM modes, 180° out of phase/0° in-phase operation, current-limit threshold and independent open-drain PGOOD signals. Typical applications include computerized numerical control, distributed DC power systems, industrial power supplies, motion control and programmable logic controllers.




Independent enable inputs

Independent adjustable soft-start time

Configurable tracking operation

Selectable PWM/DCM modes of operation

Selectable current-limit threshold

Independent PGOOD outputs

Overcurrent, overvoltage and overtemperature protection

Proven PCB layout

Fully assembled and tested

Computerized Numerical Control; Distributed DC Power Systems; Industrial Power Supplies; Motion Control; Programmable Logic Controllers
