MAXIM INTEGRATED / ANALOG DEVICES MAX17608EVKIT Voltage Protection Module

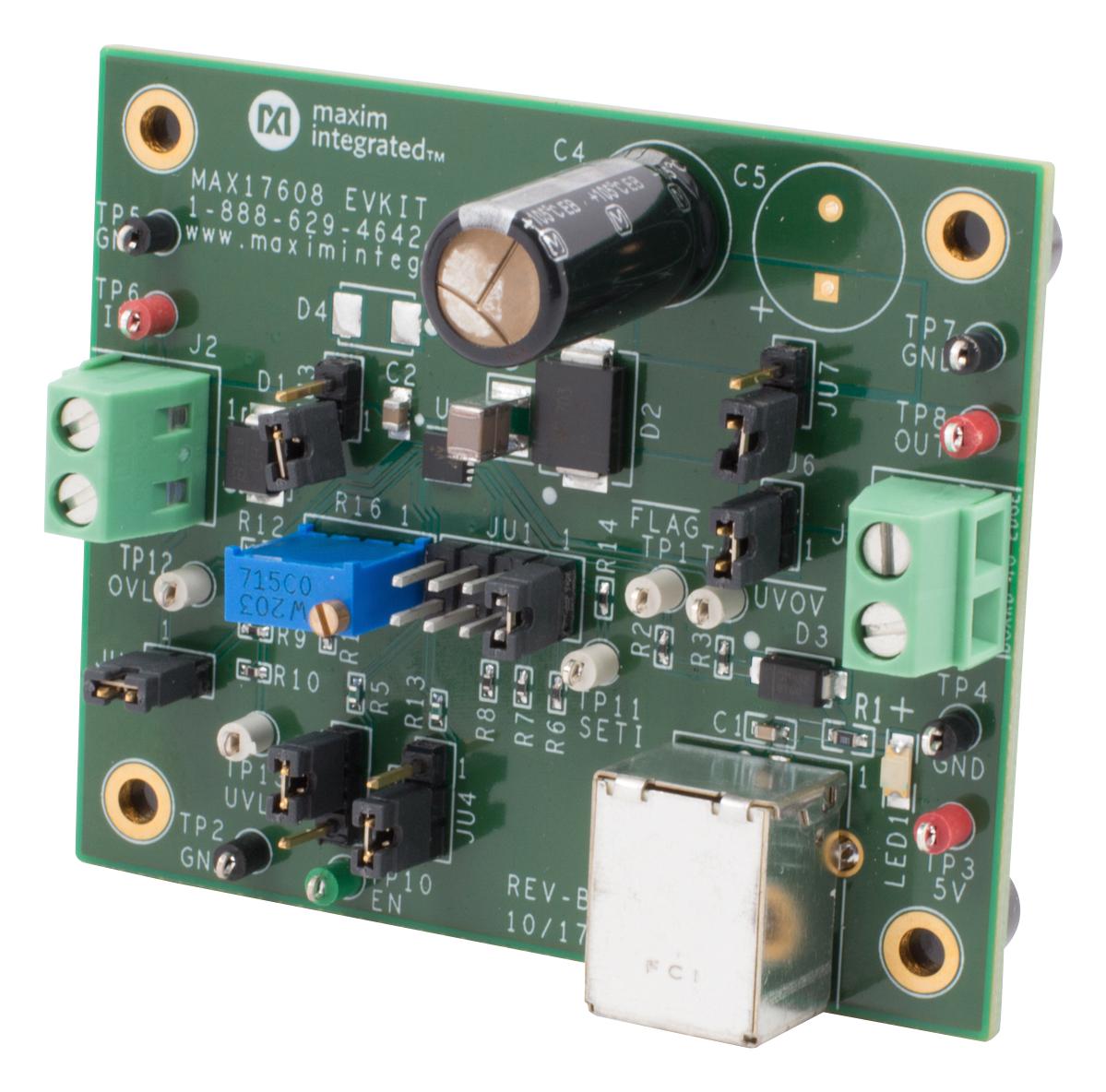

The MAX17608EVKIT from Maxim Integrated is a comprehensive evaluation board designed to demonstrate the MAX17608 overvoltage, undervoltage, and reverse voltage protection features. Fully assembled and tested, it supports input voltages from 4.5V to 60V at 1A current capacity. The board allows configuration of adjustable overvoltage protection at 36V, undervoltage protection at 4.5V, and various current-limit modes, including autoretry, continuous, and latch-off. It includes protective diodes, proven PCB layout, and jumper settings for customizing thresholds and response types, making it ideal for industrial automation, sensor networks, and power protection applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX17608EVKIT Voltage Protection Module Specifications:
- Input Voltage Range: 4.5V to 60V
- Maximum Continuous Current: 1A
- Overvoltage Protection Threshold: 36V
- Undervoltage Protection Threshold: 4.5V
- Protective Diodes: TVS Diode across input, Schottky diode at output
- Jumper-configurable Current Limit: 0.1A, 0.54A, 1.04A or adjustable
- Current-Limit Response Modes: Autoretry, Continuous, Latch-off
- Operating Temperature Range: -55°C to +125°C
- Package: 12-pin TDFN-EP
- Includes: On-board output capacitors, test points, LEDs for status indicators
- Supports adjustable thresholds via resistor dividers
- Features proven PCB layout for high reliability
Buy the Buy Maxim MAX17608EVKIT Part Number MAX17608EVKIT Online
Enhance your power protection setups by purchasing the MAX17608EVKIT online today. This fully assembled evaluation kit enables easy testing of overvoltage, undervoltage, and reverse voltage protection features. With configurable thresholds and current limits, it's perfect for industrial control, sensor systems, and power management applications. Trust in the proven PCB layout and protective diodes included to ensure safety and reliability. Get your MAX17608 evaluation board now and streamline your development process with a dependable, quality-tested circuit solution.
Order your Maxim MAX17608EVKIT today and enhance your industrial protection solutions with a reliable, fully tested voltage and reverse protection evaluation kit.
