MAXIM INTEGRATED / ANALOG DEVICES MAX20002CATPBV Buck Converter
The MAX20002/MAX20003 are compact, fully integrated step-down (buck) converters capable of delivering 2A or 3A output current. Designed with high-side and low-side MOSFETs, they operate from 3.5V to 36V input voltage, making them ideal for automotive and point-of-load applications. Their features include programmable switching frequencies from 220kHz to 2.2MHz, fixed or adjustable output voltages between 1V and 10V, and ultra-low quiescent currents of 15μA at no load. Additional benefits include high efficiency, low dropout at 98% duty cycle, PGOOD signal monitoring, and protected operation under overvoltage and thermal conditions. The devices support skip and forced-PWM modes, with spread spectrum for EMI reduction, in a small 20-pin TQFN package with exposed pad, requiring few external components for flexible power supply configurations.
MAXIM INTEGRATED / ANALOG DEVICES MAX20002CATPBV Buck Converter Specifications:
- Input Voltage Range: 3.5V to 36V
- Output Voltage: Fixed options at 5V/3.3V or programmable 1V–10V
- Output Current: MAX20002 = 2A, MAX20003 = 3A
- Switching Frequency: 220kHz to 2.2MHz, resistor programmable
- Quiescent Current: 15μA at no load
- Dropout Operation: 98% duty cycle
- Package: 20-pin TQFN with exposed pad
- Protection: Overvoltage, thermal shutdown, load dump protection
- Efficiency: High, with low ripple and EMI management options via spread spectrum
- Operating Temperature: -40°C to +125°C
- Application: Automotive point-of-load, DC distribution, navigation modules

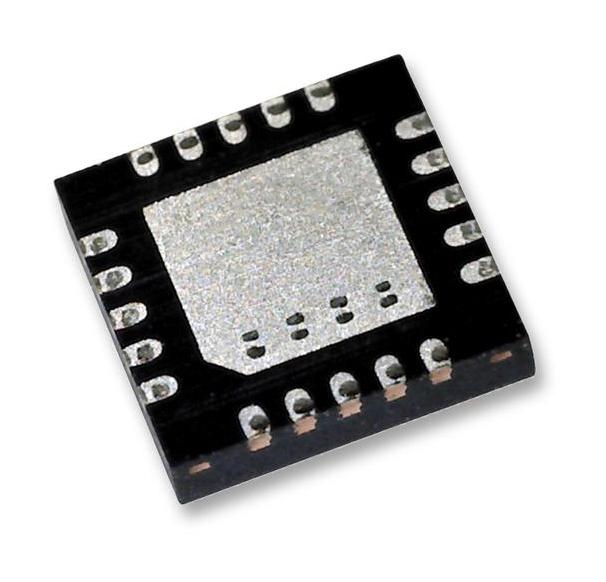

Buy the Buy MAXIM Integrated MAX20002 Part Number MAX20002CATPB Online
Buy the MAX20002 buck converter online today to enjoy reliable, high-efficiency power conversion suitable for automotive, industrial, and point-of-load applications. Featuring programmable output from 1V to 10V, operational from 3.5V to 36V input, and supporting up to 3A current, this compact device ensures optimal performance with minimal external components. Its spread spectrum feature reduces EMI, while protections like overvoltage and thermal shutdown add reliability. Quick delivery and easy ordering make it the ideal choice for your power management needs.
Order your MAXIM Integrated MAX20002 buck converter today and ensure stable, efficient power delivery for your automotive and industrial projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20002CATPBV?
You can click on the BUY or RFQ button to purchase MAX20002CATPBV from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20002CATPBV?
You can download the MAX20002CATPBV datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20002CATPBV?
MAXIM INTEGRATED / ANALOG DEVICES
