MAXIM INTEGRATED / ANALOG DEVICES MAX20008EAFOCVY DC-DC Step-Down Converter
The MAX20008E is a high-efficiency, wide-input voltage DC-DC step-down converter featuring integrated high-side and low-side MOSFETs, programmable switching frequency, and adjustable or fixed output voltages of 3.3V, 3.9V, or 5V. Designed for automotive and industrial applications, it offers advanced features including spread spectrum, thermal shutdown, cycle-by-cycle current limit, and high maximum duty cycle (98%). Its compact 3.5mm x 3.75mm FC2QFN package ensures easy integration into space-constrained systems while providing excellent transient response, EMI management, and reliable operation over a range of temperatures (-40°C to +150°C).
MAXIM INTEGRATED / ANALOG DEVICES MAX20008EAFOCVY DC-DC Step-Down Converter Specifications:
- Input Voltage Range: 3V to 36V
- Output Voltages: Fixed 3.3V, 3.9V, 5V or adjustable 1V to 5V
- Maximum Output Current: 8A
- Switching Frequency: 400kHz or 2.1MHz (synchronizable to external clock)
- Package: 3.5mm x 3.75mm FC2QFN (17-pin)
- Quiescent Current: 15uA (typ) in skip mode
- Max Duty Cycle: 98%
- Temperature Range: -40°C to +150°C
- Protection Features: Thermal shutdown, cycle-by-cycle current limit, overvoltage protection
- Spread Spectrum Enabled: Yes, via SSEN pin
- Soft-Start Duration: 5ms or 10ms (factory set)
- Synchronization: External clock support for fixed frequency operation
- Pin-Selectable Spread Spectrum: Yes
- Efficiency: Up to 90% in typical conditions
- Input Ripple Reduction: Via high-quality ceramic capacitors
- Design: Automotive-qualified, RoHS compliant

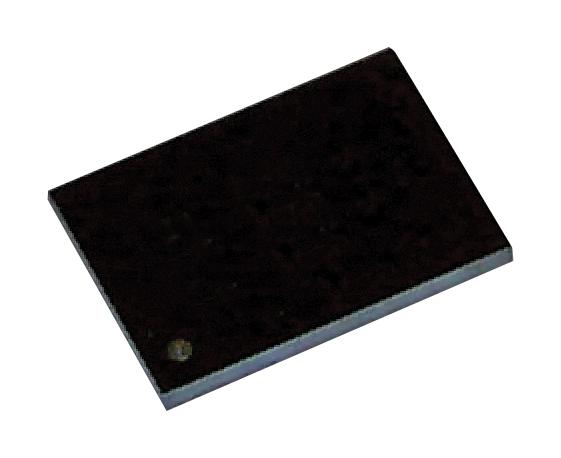

Buy the Buy MAXIM Integrated MAX20008E High-Voltage DC-DC Step-Down Converter Part Number MAX20008EAFOCVY Online
Experience reliable, high-efficiency power conversion with the MAX20008E. This automotive-grade step-down converter features integrated MOSFETs, programmable switching frequency, and multiple output options. Its compact FC2QFN package makes it ideal for space-constrained applications like vehicles, industrial systems, and distributed power architectures. Advanced features include spread spectrum to reduce EMI, thermal shutdown, and cycle-by-cycle current limiting. Designed for wide temperature operation, it ensures durable performance, high thermal reliability, and excellent transient response in demanding environments. Order now for dependable power solutions.
Get MAXIM MAX20008E today—designed for automotive robustness, high efficiency, and space-saving integration in demanding power systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20008EAFOCVY?
You can click on the BUY or RFQ button to purchase MAX20008EAFOCVY from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20008EAFOCVY?
You can download the MAX20008EAFOCVY datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20008EAFOCVY?
MAXIM INTEGRATED / ANALOG DEVICES
