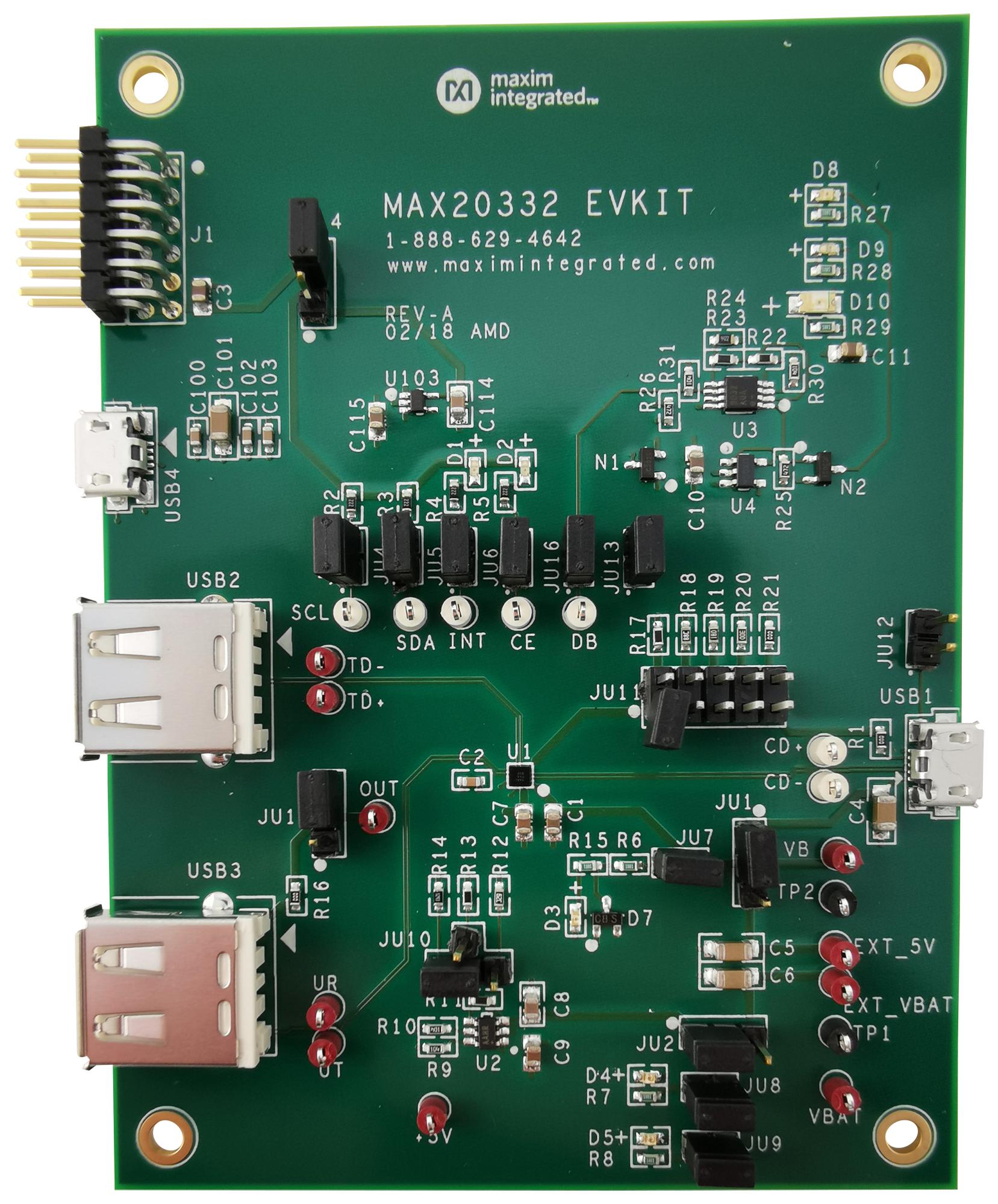

MAXIM INTEGRATED / ANALOG DEVICES MAX20332EVKIT Charger Detection Module
The MAX20332 evaluation kit (EV kit) is a fully assembled, tested PCB designed to evaluate the USB charger detection capabilities of the MAX20332 IC with integrated overvoltage protection. It features a Pmod™ connector for I2C interface, on-board configurable LDO supplying 2.3V, 3.3V, or 4.2V, and USB connectors for device testing. The kit demonstrates charger detection, overvoltage protection, and USB switch control, operating from USB +5V without needing an external power source, ideal for USB power management applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX20332EVKIT Charger Detection Module Specifications:
- Operating Voltage: USB +5V
- IC Package: 16-bump wafer-level package (WLP)
- Configurable LDO Output: 2.3V, 3.3V, 4.2V
- USB Connectors: Type-A and micro-B
- Supports I2C Interface via Pmod™ connector
- Surface-Mount Components
- Full assembly and testing included
- Operating Temperature: Not specified
- Power Consumption: Not specified
- Operating from USB power supply
- Includes test points for signals
- PCB size and layout optimized for USB applications
Buy the Maxim Series Charger Detection: MAX20332EVKIT
Purchase the Maxim MAX20332 evaluation kit online for a complete, tested PCB that enables efficient USB charger detection, overvoltage safeguarding, and USB switch control. This ready-to-use setup simplifies development for power management solutions, featuring configurable low-dropout regulators, integrated protections, and easy interface options. Ideal for engineers designing USB power systems, it provides reliable performance and quick evaluation of the MAX20332 IC’s features, ensuring seamless integration into your devices with minimal effort.
Get Maxim MAX20332 evaluation kit today—built for precise charger detection, overvoltage protection, and reliable USB switching.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20332EVKIT?
You can click on the BUY or RFQ button to purchase MAX20332EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20332EVKIT?
You can download the MAX20332EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20332EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
