MAXIM INTEGRATED / ANALOG DEVICES MAX208EEAG+ Datasheet & Stock

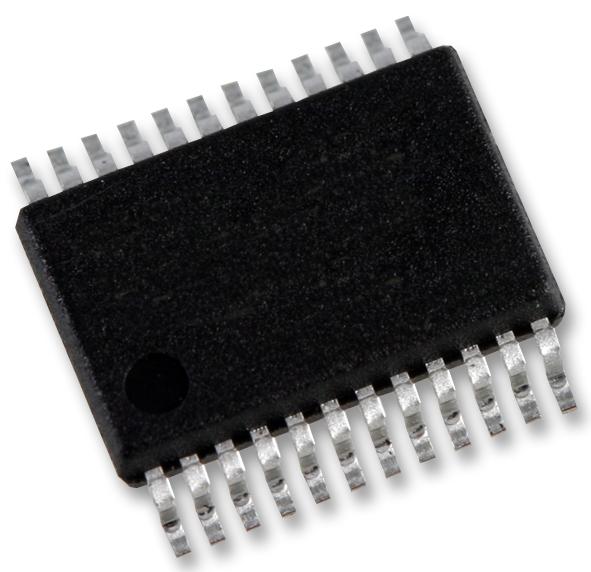

The MAX208EEAG+ is a ±15KV ESD protected, +5V RS232 transceiver in 24 pin SSOP package. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM (Human Body Model) protection and integrated charge pump circuitry for single 5V supply operation. This transceiver meets all EIA/TIA232E and CCITT V.28 specifications at data rate up to 120Kbps when loaded. This device is typically used in battery powered equipment.




Four drivers and four receivers

Supply voltage range from 4.5V to 5.5V

Operating temperature range from -40°C to 85°C

Supply current is 11mA

Four 0.1µF external capacitors

Saves board space

Saves power for reduced power requirement





Applications


Communications & Networking,

Portable Devices,

Medical
