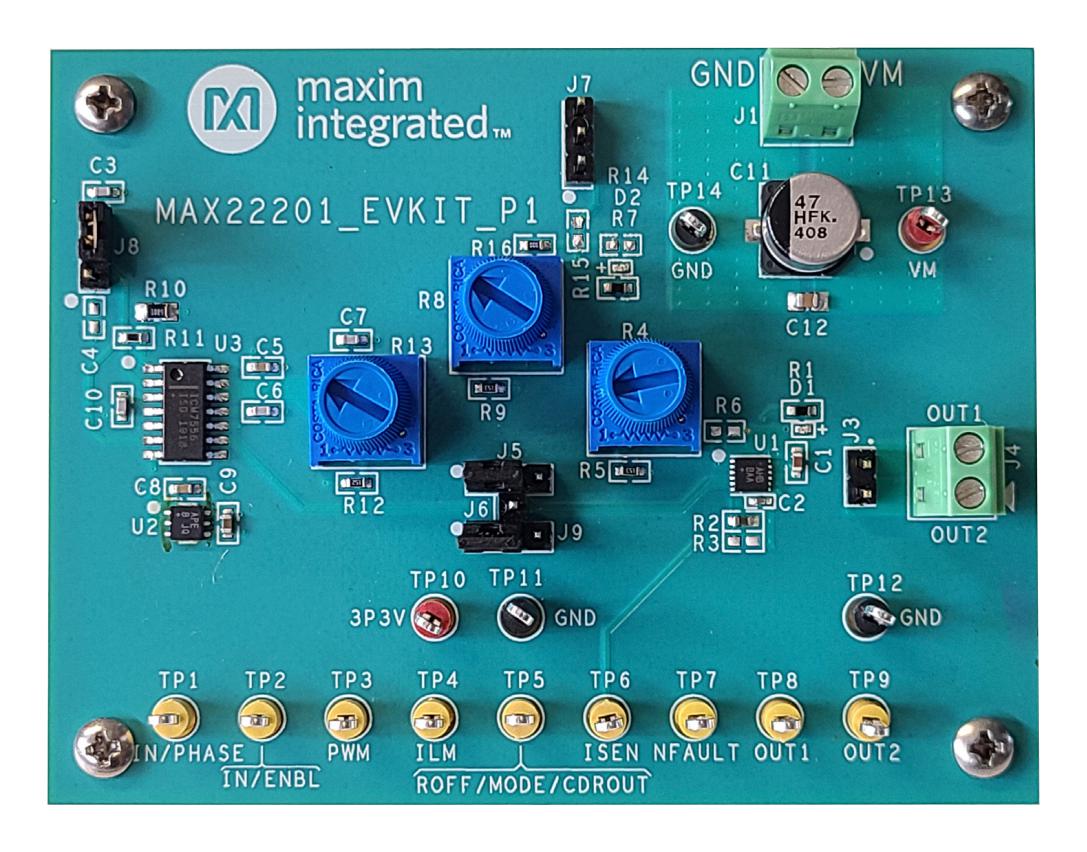

MAXIM INTEGRATED / ANALOG DEVICES MAX22201EVKIT Motor Driver Evaluation Kit
The MAX22201 evaluation kit (EV kit) offers a complete solution for testing a brushed DC motor driver in a 36V, 3.5A application. It includes adjustable PWM, current limiting, and short-circuit protection features, with on-board PWM generator and configurable off-time. The kit features easy-to-use headers, test points, and terminal blocks for motor control, making it ideal for evaluating the MAX22201 IC's performance, efficiency, and safety features in motor drive systems. Includes a proven PCB layout for rapid testing and development.
MAXIM INTEGRATED / ANALOG DEVICES MAX22201EVKIT Motor Driver Evaluation Kit Specifications:
- Power supply: +4V to +36V DC, 5A
- Motor driver: Full bridge configuration, 36V, 3.5A
- High impedance RON: 0.30
- PWM frequency: 16.5kHz fixed, adjustable via onboard circuitry
- Current limit range: 0.43A to 2.7A with resistor R4
- Off-time: 30kΩ to 230kΩ potentiometer, adjustable
- IC: MAX22201 in QFN package
- On-board LDO: MAX15006 for 3.3V power output
- PWM generator: on-board with duty cycle 4% to 95%
- Input control: External PWM or onboard PWM via headers
- Protection features: Short circuit, overcurrent, and shutdown
- Operating temperature: Commercial range
Buy the Maxim Series MAX22201 Motor Driver: MAX22201EVKIT
Purchase the Maxim Series MAX22201 evaluation kit online today to streamline your motor driver testing. This comprehensive kit includes adjustable PWM, current limiting, proven PCB layout, and easy connectivity for motor control applications. Designed for engineers working on 36V, 3.5A brushed DC motor systems, it simplifies evaluation through test points, headers, and onboard PWM generator. Ensure your development process is efficient and reliable by ordering your MAX22201EVKIT now. Get productive testing instantly.
Order your Maxim Series MAX22201EVKIT today and give your motor control projects the dependable quality they deserve with easy evaluation capabilities.
