MAXIM INTEGRATED / ANALOG DEVICES MAX22344CAAP Digital Isolator
The MAX22344 family of reinforced 4-channel digital isolators offers fast, low-power signal transfer with a 3.75kVpms withstand voltage. These devices support unidirectional configurations for SPI, RS-485, and digital I/O applications, providing high data rates up to 200Mbps. Suitable for industrial automation, medical systems, and battery management, they feature independent power supplies, default output states, and robust isolation. Encased in a 20-pin SSOP package, they operate from -40°C to +125°C, ensuring reliable galvanic isolation and EM interference immunity in demanding environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX22344CAAP Digital Isolator Specifications:
- Maximum Data Rate: 200Mbps
- Isolation Voltage: 3.75kVpms for 60s, continuous withstand of 784Vpms
- Operating Temperature: -40°C to +125°C
- Package Type: 20-pin SSOP
- Dimensions: 20 pins, pitch standard for SSOP
- Supply Voltage Range: 1.71V to 5.5V per side
- Input/Output Voltage Levels: Compatible with TTL and CMOS
- Default Output State: User-selectable High or Low
- Isolation Resistance: >10¹¹Ω at 500V
- Internal Power Dissipation: Maximum 952.4mW at TA=+70°C
- EMI Immunity: High, with reinforced galvanic isolation
- Protection Features: Surge withstand 10kV, partial discharge voltage 2078Vp

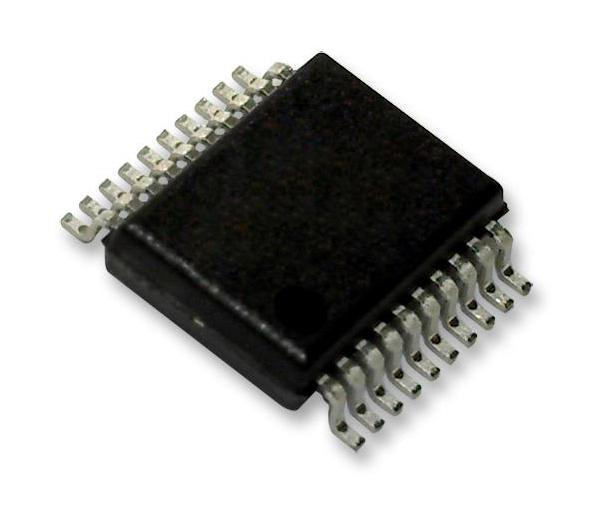

Buy the Buy Maxim Digital Isolator Part Number MAX22344CAAP Online
Discover the high-performance Maxim MAX22344 digital isolator, offering four-channel galvanic isolation with a 3.75kVrms withstand voltage. Supports data rates of up to 200Mbps, ideal for industrial automation, medical systems, and battery management. Features independent power supplies, user-selectable default states, and compact SSOP packaging for easy integration. With robust safety and EMI immunity, this low-power device guarantees reliable operation from -40°C to +125°C, safeguarding sensitive circuitry against high-voltage transients and ensuring efficient data transmission in demanding environments.
Order your Maxim MAX22344CAAP today and ensure reliable, high-speed digital signal isolation with low power consumption and robust safety ratings.
