MAXIM INTEGRATED / ANALOG DEVICES MAX25612BATPVY Automotive LED Driver
The MAX25612B is a high-efficiency, single-channel LED driver designed for automotive front lighting applications such as high and low beams, DRLs, and fog lights. Capable of operating from 5V to 48V input, it supports boost, buck-boost, SEPIC, and high-side buck configurations. With synchronous rectification, it achieves over 90% efficiency, includes features like high-side current sensing, PWM and analog dimming, spread-spectrum EMI reduction, thermal and overvoltage protections, and operates across -40°C to +125°C automotive temperature range. Compact in 20-pin TQFN or TSSOP packages, ideal for automotive and industrial lighting systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX25612BATPVY Automotive LED Driver Specifications:
- Input Voltage Range: 5V to 48V (operational), up to 65V (boost output)
- Output Voltage: Max 60V for LED string
- Efficiency: >90% with synchronous rectification
- Input Voltage Tolerance: -40°C to +125°C operating temperature
- Package Options: 20-pin TQFN and TSSOP with exposed pad
- Protection Features: Overvoltage, thermal shutdown, short-circuit protection
- Switching Frequency: Programmable from 200kHz to 2.2MHz
- Current Sensing: High-side with integrated amplifier, programmable via resistor
- Dimming: PWM (up to 5000:1 ratio) and analog (via ICTRL input)
- Spread Spectrum Modulation: Yes, improves EMI performance
- Current modes: Boost, buck-boost, SEPIC, high-side buck configurations
- Built-in regulation and fault indicators for reliable operation
- Designed for automotive lighting, industrial, and architectural applications

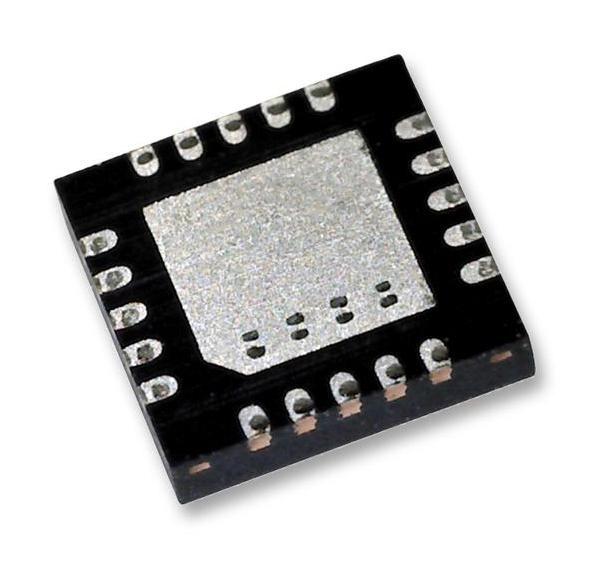

Buy the Maxim MAX25612B – Reliable Automotive LED Driver for Industrial Applications
Order the Maxim MAX25612B online today to improve your automotive lighting systems with high-efficiency LED driving solutions. This driver features robust protections, wide input voltage range, synchronous rectification for over 90% efficiency, and supports PWM and analog dimming for flexible brightness control. Its compact 20-pin packages save board space, making it ideal for high-brightness automotive front lights, DRLs, fog lights, and more. Ensure reliable, efficient operation with the MAX25612B, an automotive-qualified device that withstands harsh environments from -40°C to +125°C. Purchase now and upgrade your automotive lighting systems with confidence.
Buy Maxim MAX25612B now and experience unmatched efficiency, compact design, and reliable automotive lighting performance.
