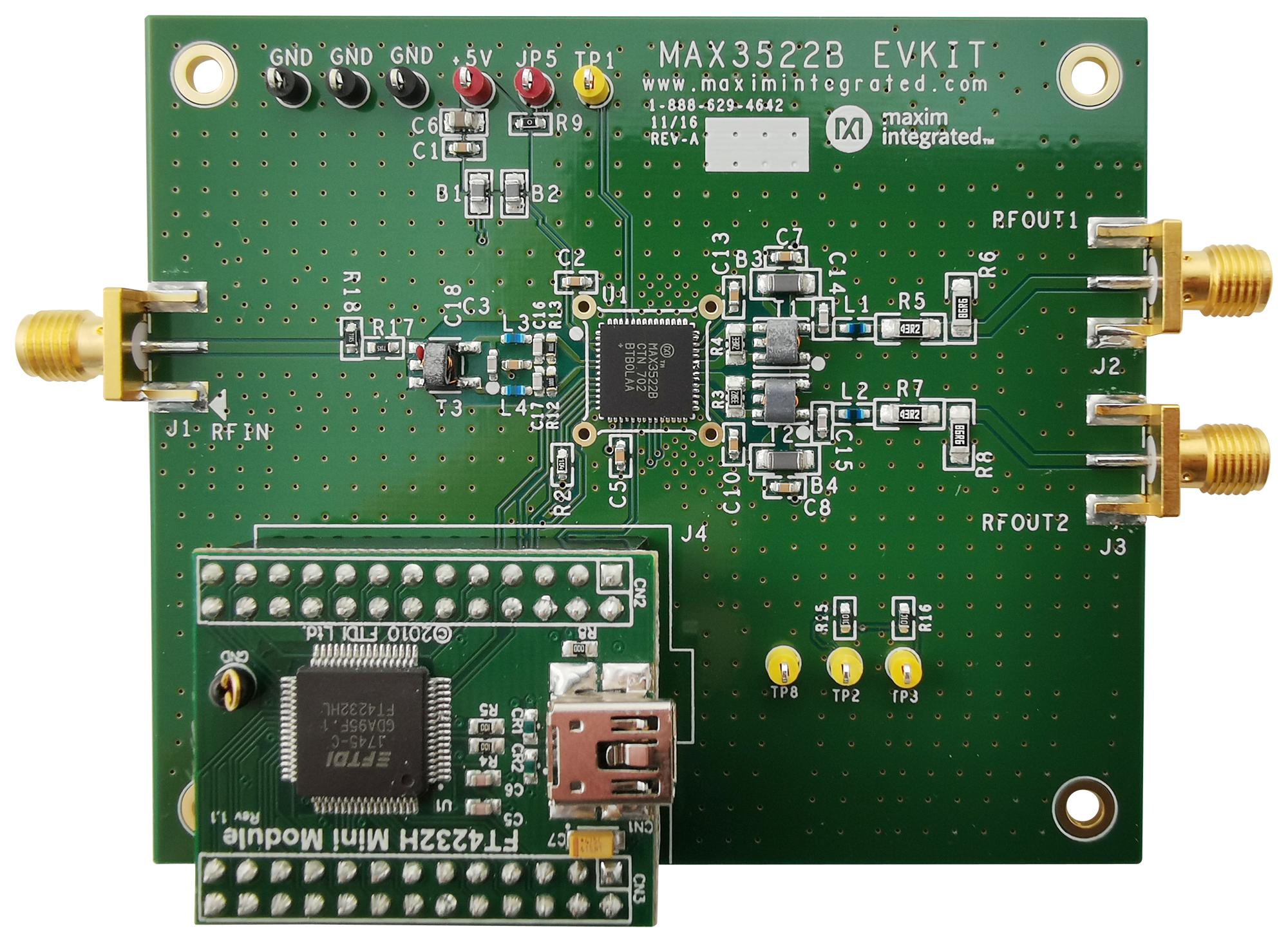

MAXIM INTEGRATED / ANALOG DEVICES MAX3522BEVKIT RF Amplifier Evaluation Kit
Evaluation kit for the MAX3522B, enabling easy assessment of the device's performance. It features 50-ohm SMA connectors, all critical peripheral components included, and a reference design-ready layout. The kit is fully assembled and tested, with included PC control software for ease of use.
MAXIM INTEGRATED / ANALOG DEVICES MAX3522BEVKIT RF Amplifier Evaluation Kit Specifications:
- Includes 50-ohm SMA connectors for inputs and outputs
- Fully assembled, tested, and ready-to-use evaluation board
- Reference design layout provided for easy customization
- Operates with +5V power supply capable of 2000mA
- High-performance RF amplifier with detailed PCB layout
- Supplied with PC control software for parameter configuration
- Supports testing up to 204MHz frequency range
- Input impedance: 50Ω, Output impedance: 75Ω
- Input and output connectors: SMA type, 500 series layout-compatible
- Embedded heatsinking with ground connection for optimal thermal management
Buy the Maxim Series MAX3522B RF Amplifier: MAX3522BEVKIT
Order the MAX3522B RF amplifier evaluation kit online today to streamline your testing process. This fully assembled and tested board offers SMA connectivity, a reference layout, and user-friendly PC software, making performance assessment straightforward. Ideal for engineers evaluating high-frequency RF amplifiers up to 204MHz, it ensures accurate results and easy customization. Don’t miss out—purchase now to enhance your RF development projects with confidence and precision.
Get Maxim MAX3522BEVKIT today—designed for precise RF performance evaluation and reliable operation in test setups.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX3522BEVKIT?
You can click on the BUY or RFQ button to purchase MAX3522BEVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX3522BEVKIT?
You can download the MAX3522BEVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX3522BEVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
