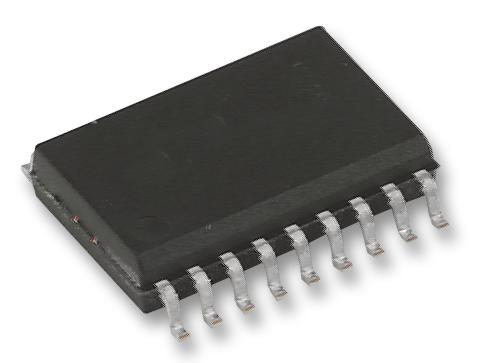

MAXIM INTEGRATED / ANALOG DEVICES MAX367CWN Signal Line Protector

The MAX367CWN+ is an 18-pin WSOIC package signal line circuit protector designed to safeguard sensitive electronic components from voltage surges and faults. It features two-terminal protection circuits, each comprising two N-channel FETs and one P-channel FET, capable of handling voltages up to ±40V. The device is suitable for use with unipolar (4.5V to 36V) or bipolar (±2.25V to ±18V) power supplies, and provides automatic overvoltage protection during power-up, power-down, or fault conditions. It is normally on when powered and open when off, with a maximum on-resistance of 100 ohms at ±10V supplies and leakage below 1nA at +25°C. Applications include process control, hot insertion boards, data acquisition, backup systems, and automatic test equipment. Key features include a maximum supply voltage of 44V, an operating temperature range of 0°C to 70°C, eight independent symmetrical protectors, and fast, reliable overvoltage protection without the need for programming or control circuits. The signal path resistance matches within 7 ohms at +25°C.

View MAX367CWNDatasheet [pdf]

Buy the Buy Maxim Signal Line Circuit Protector Part Number MAX367CWN Online

Secure your sensitive electronic components with the advanced MAX367CWN signal line protector. Designed for automatic, reliable overvoltage protection up to ±40V, it is ideal for process control, data acquisition, and backup systems. Its low on-resistance and ultra-low leakage ensure minimal impact on signal integrity during normal operation, while providing robust defense during fault conditions. Easy to integrate in compact forms thanks to an 18-pin WSOIC package, the MAX367CWN offers essential protection without complexity—perfect for high-reliability electronic applications requiring fast response and long-term durability.

Order your Maxim Series MAX367CWN today and protect your sensitive circuits with reliable, fast overvoltage protection in a compact package.
