MAXIM INTEGRATED / ANALOG DEVICES MAX40010EVKIT Current Sense Amplifier

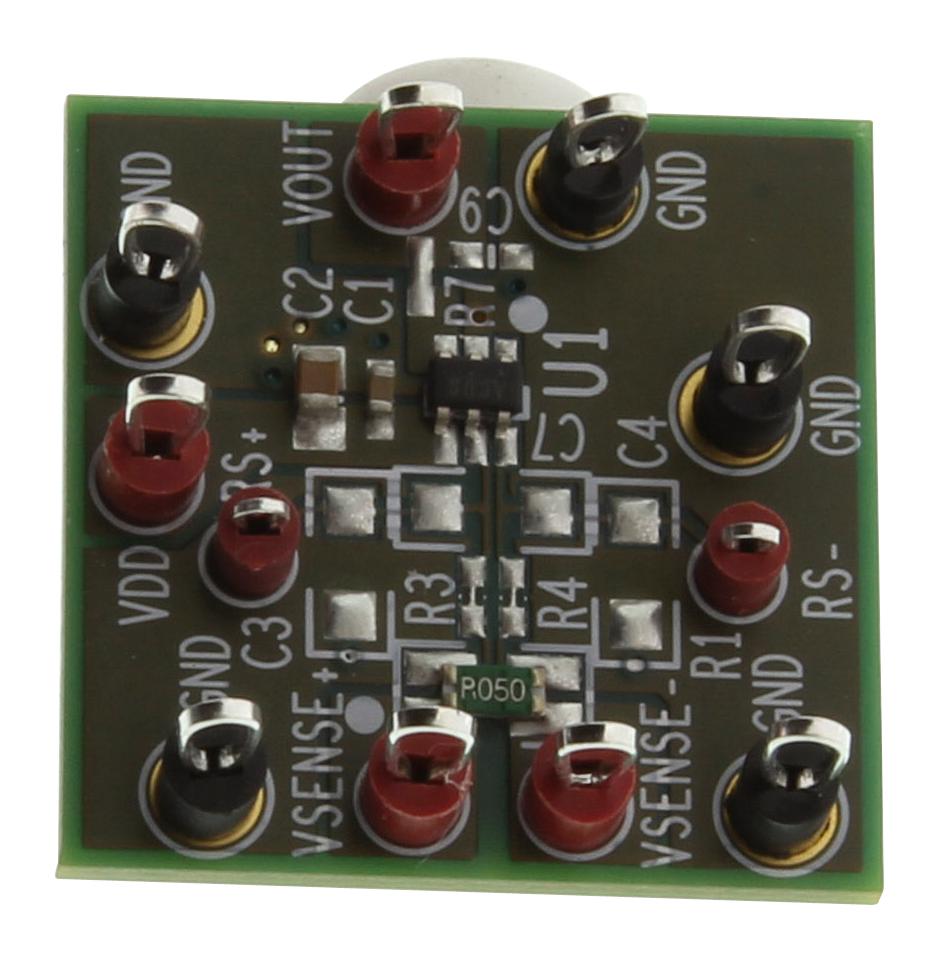

The MAX40010EVKIT from Maxim Integrated Products is an evaluation kit designed for the MAX40010 dual-channel, high-precision, high-voltage current-sense amplifier. The kit features a proven PCB design with the MAX40010TAWT+ amplifier installed, which provides a 20V/V gain in a 5-pin SOT-23 package. It enables easy testing and demonstration of the device's capabilities in applications such as automotive sensing, base stations and communication equipment, energy management, server backplanes and data centers, and solar panel monitoring. The kit supports precision real-time current monitoring with an input common-mode voltage range from 2.7V to 76V. It comes fully assembled and tested for convenience.
MAXIM INTEGRATED / ANALOG DEVICES MAX40010EVKIT Current Sense Amplifier Specifications:
- Gain: 20V/V (with options for 12.5V/V, 50V/V, 100V/V)
- Input voltage range: 2.7V to 76V
- Current measurement: via 0.050 sense resistor
- Offset voltage: less than 12µV (max)
- Gain error: less than 0.1% (max)
- Power supplies: +3.3V and +5V DC
- Device package: 5-pin SOT-23
- PCB cost: fully assembled and tested
- Application areas: automotive sensing, communication, energy, data centers
- Current load testing: electronic load capable of sinking 3A
Buy the Maxim Integrated MAX40010U2013 Reliable Current Sensing for Industrial Applications
Purchase the MAX40010 evaluation kit online today to access a proven design that simplifies testing high-precision, high-voltage current sensing solutions. This fully assembled board allows for immediate evaluation in various industrial applications, including automotive sensing, data centers, and energy management. With a 20V/V gain setting and input voltage range from 2.7V to 76V, the kit offers excellent accuracy and reliability. Make your project testing quick and effective by ordering this dependable solution online—experience precision in current measurement today.
Order your Maxim Integrated MAX40010EVKIT today and experience high-precision current sensing ideal for industrial and communication systems.
