MAXIM INTEGRATED / ANALOG DEVICES MAX4704EGC 4-Channel Analog Multiplexer
The MAX4704EGC+ from Maxim Integrated Products is a low-voltage, 4-channel analog multiplexer in a 12-pin QFN package. It features a 60-ohm on-resistance, operates from a single power supply of 1.8V to 5.5V, and supports rail-to-rail signal handling. The device offers break-before-make switching with switching times of approximately 60ns on and 20ns off at 3V. It provides high off-isolation and low crosstalk, making it suitable for high-frequency and audio/video signal routing applications. Its digital inputs are 1.8V logic compatible, ideal for battery-powered devices such as MP3 players, cell phones, communication systems, data acquisition, and relay replacement.
MAXIM INTEGRATED / ANALOG DEVICES MAX4704EGC 4-Channel Analog Multiplexer Specifications:
- Package: 12-pin QFN (3mm x 3mm)
- Supply Voltage: 1.8V to 5.5V
- On-Resistance: 60Ω (max) at 2.7V supply, 40Ω (max) at 5V supply
- Switching Time: 60ns on, 20ns off at 3V
- Channels: 4
- Off-Isolation: -85dB (1MHz)
- Crosstalk: -90dB (1MHz)
- Rail-to-Rail Signal Handling
- Digital Logic Compatibility: 1.8V logic from +2.7V to +3.3V
- High Off-Leg-Range Isolation: -85dB at 1MHz
- Input Leakage Current: 100pA (max) at 25°C
- Operating Temperature Range: -40°C to +85°C
- Applications: High-frequency signal routing, audio/video, battery-powered equipment, relay replacement, communication circuits, data acquisition

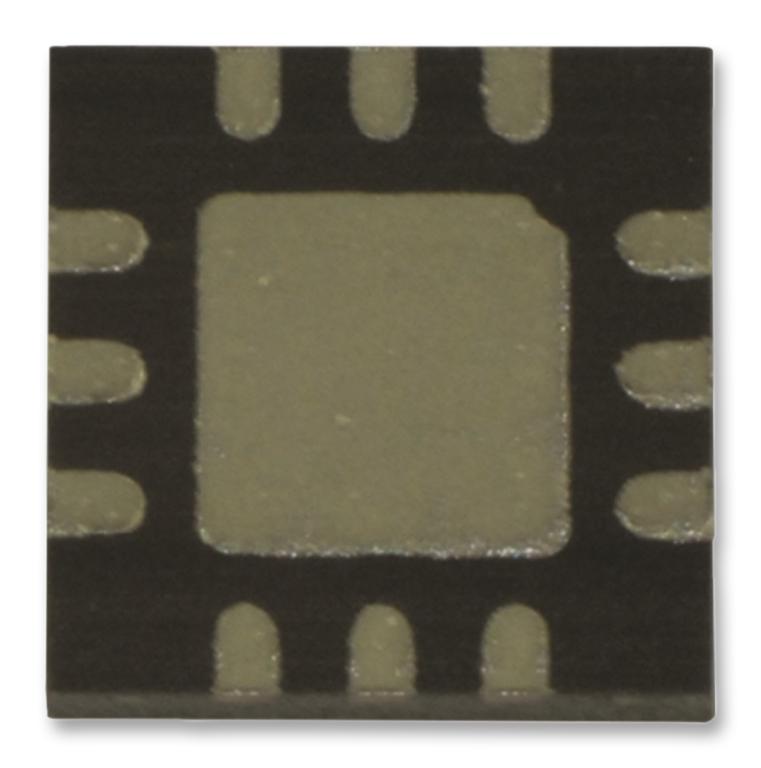

Buy the Buy Maxim MAX4704EGC Low-Voltage 4-Channel Multiplexer Part Number MAX4704EGC Online
Purchase the Maxim MAX4704EGC now to secure a high-performance 4-channel analog multiplexer suitable for RF, audio, and video applications. This device offers low on-resistance, high off-isolation, and rail-to-rail signal support, ideal for battery-powered and high-frequency projects. Easy to control with 1.8V logic compatible inputs, it ensures low leakage and excellent crosstalk. Perfect for signal routing, relay replacement, and data acquisition, this multiplexer guarantees fast switching times and reliable operation in a compact 12-pin QFN package. Get yours today and improve your system’s signal integrity and performance.
Order your Maxim MAX4704EGC low-voltage 4-channel analog multiplexer today and enhance your high-frequency signal routing with reliable performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4704EGC?
You can click on the BUY or RFQ button to purchase MAX4704EGC from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4704EGC?
You can download the MAX4704EGC datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4704EGC?
MAXIM INTEGRATED / ANALOG DEVICES
