MAXIM INTEGRATED / ANALOG DEVICES MAX528CPP Octal DAC

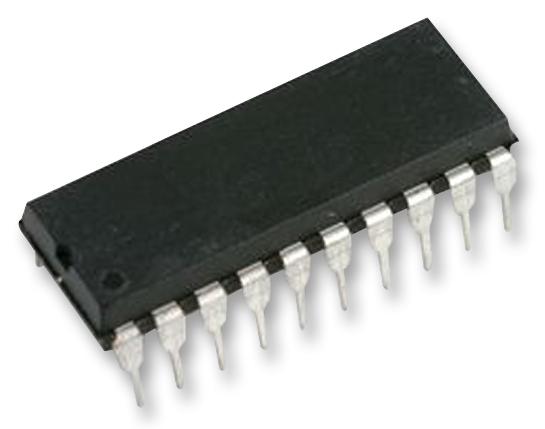

The MAX528CPP+ is an octal, 8-bit, serial digital-to-analog converter (DAC) housed in a 20-pin DIP package. This monolithic device integrates the DAC, eight output buffers, and serial interface logic. It operates from a single power supply of up to 15V or split supplies up to 20V, including options such as +5V/-15V, +12V/-5V, and +15V/-5V. A shutdown feature reduces current consumption to below 50µA while retaining internal DAC data. It supports three programmable output modes: unbuffered, full buffered, and half buffered, offering flexible power and drive capabilities. Suitable for digital calibration, gain/offset adjustments, microcontroller outputs, and replacing trim potentiometers. Operates within 10.8V to 16.5V, from 0°C to 70°C. Features a 3-wire serial interface, eight buffered non-inverting outputs, buffer disable, low power shutdown, and differential reference inputs. Ensures a full-scale error of ±1/2 LSB (unbuffered), gain error of -0.2%, and relative accuracy of ±0.3 LSB with a differential non-linearity of ±0.3 LSB for precise, stable performance with capable drive loads.
MAXIM INTEGRATED / ANALOG DEVICES MAX528CPP Octal DAC Specifications:
- Resolution: 8 bits
- Output Channels: 8 buffered, non-inverting outputs
- Operation Voltage: Up to 15V single supply or split supplies up to 20V
- Supply Voltage Range: 10.8V to 16.5V
- Temperature Range: 0°C to 70°C
- Power Dissipation: Less than 50µA in shutdown mode
- Interface: 3-wire serial with clock, data, chip select, and shutdown control
- Reference Inputs: Differential, compatible with external references
- Full-Scale Error: ±1/2 LSB
- Gain Error: -0.2% (full buffered mode)
- Relative Accuracy: ±0.3 LSB
- Differential Non-linearity: ±0.3 LSB
- Operation Modes: Unbuffered, full-buffered, half-buffered
- Shutdown Mode: Reduces current to below 50µA while retaining DAC data
Buy the Buy MAXIM MAX528CPP+ Octal 8-Bit Serial DACs with Output Buffer Online
Purchase the MAXIM MAX528CPP+ online today to benefit from its high-precision 8-bit, octal, serial DAC design featuring multiple output modes, differential references, and low power shutdown. Ideal for digital calibration, offset adjustments, and microcontroller analog outputs, this device offers ±0.3 LSB relative accuracy, ±0.2% gain error, and minimal full-scale error, ensuring reliable performance. Its robust interface and differential references make it suitable for sophisticated control systems, demanding precise, stable analog output with excellent load drive capacity. Order now for fast delivery and technical support.
Order your MAXIM MAX528CPP+ octal, 8-bit serial DAC today and enhance your calibration, control, or microcontroller projects with dependable precision.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX528CPP?
You can click on the BUY or RFQ button to purchase MAX528CPP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX528CPP?
You can download the MAX528CPP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX528CPP?
MAXIM INTEGRATED / ANALOG DEVICES
