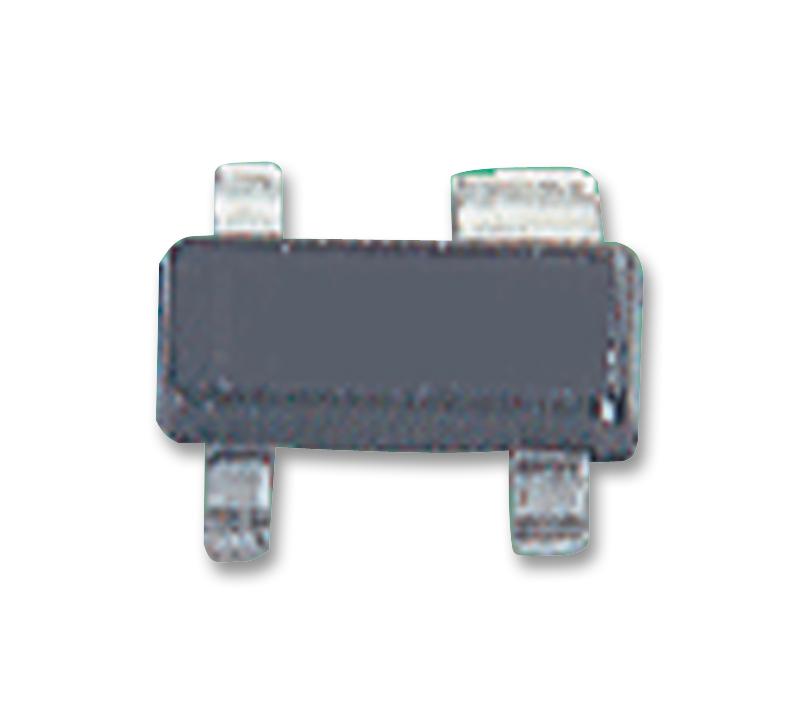

MAXIM INTEGRATED / ANALOG DEVICES MAX6384XS31D3T Microcontroller Reset Circuit

The MAX6384XS31D3+T is a low-voltage, low-power microprocessor supervisory circuit in a 4-pin SC-70 package. It monitors voltages from 1.8V to 5V, consuming only 6μA at 3.6V. Featuring a reset threshold of 3.08V with ±2.5% accuracy, it offers a push-pull active-low reset output and a debounced manual reset input. The device asserts reset during VCC dips below threshold, maintaining it for at least 280ms after VCC recovers. Rated for -40°C to 125°C, it ensures reset validity down to 1V VCC, perfect for microcontroller power management in portable and battery-powered systems.

View MAX6384XS31D3TDatasheet [pdf]

Buy the Maxim Series MAX6384 Low-Voltage Microcontroller Reset Circuit: MAX6384XS31D3T

Order the Maxim MAX6384XS31D3T online today to safeguard your microcontroller or portable device’s power supply. This low-voltage, low-power supervision circuit provides accurate reset thresholds from 1.8V to 5V, with a manual reset option and a minimum timeout of 280 milliseconds. Suitable for battery-powered systems operating down to 1V VCC and capable of operating over a wide temperature range from -40°C to 125°C, ensuring your system's power integrity and safety in diverse environments.

Buy Maxim MAX6384XS31D3T now and ensure reliable power supervision for your microcontroller-powered applications with low power consumption and robust performance.
