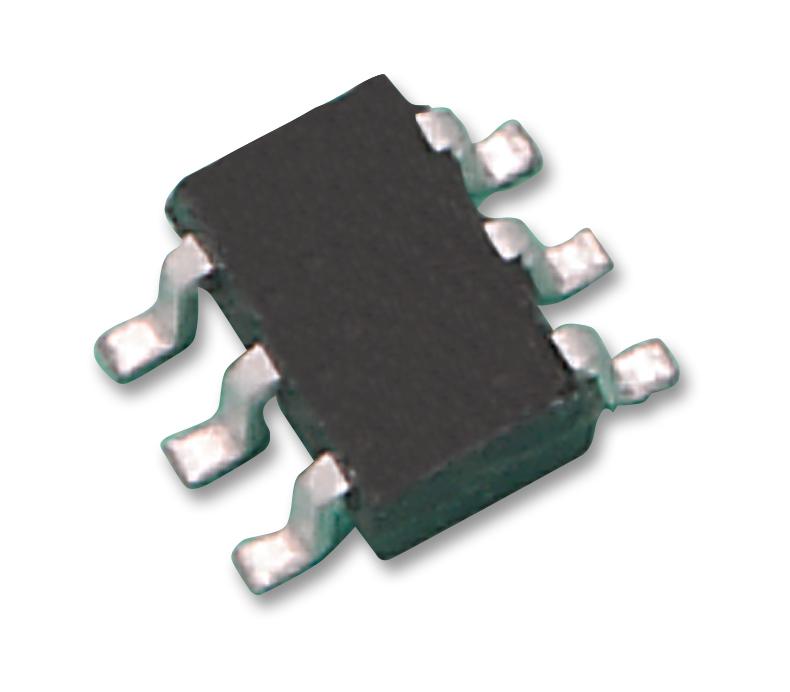

MAXIM INTEGRATED / ANALOG DEVICES MAX6700UTT Voltage Supervisory Circuit
The MAX6700UT+T is a low-voltage, high-accuracy triple voltage microprocessor supervisory circuit housed in a 6-pin SOT-23 package. This device monitors up to three system supply voltages and asserts a single active-low reset output if any voltage drops below its preset threshold. It reduces system size and component count while enhancing reliability compared to separate ICs or discrete components. The open-drain reset output features a weak internal pull-up resistor to IN2 and has a propagation delay of approximately 5 microseconds once all monitored voltages exceed their thresholds. The circuit operates over a supply voltage range of 2V to 5.5V, with a low supply current of about 35 microamps, and functions within a temperature range of -40°C to 85°C. It includes a separate unmonitored power supply input and three adjustable voltage thresholds, capable of monitoring voltages down to 0.62V with 1.5% accuracy. The device is suitable for system monitoring applications in communications, networking, consumer electronics, and portable devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX6700UTT Voltage Supervisory Circuit Specifications:
- Supply Voltage Range: 2V to 5.5V
- Input Voltage 1 (IN1): Monitored, threshold adjustable down to 0.62V
- Input Voltage 2 (IN2): Power supply input, monitored voltage
- Input Voltage 3 (IN3): Monitored, threshold adjustable down to 0.62V
- Reset Output: Active-low, open-drain with weak internal pull-up (10µA)
- Propagation Delay: 5 microseconds (MAX6700)
- Reset Timeout Period: 140 milliseconds minimum (MAX6710)
- Supply Current: 35 microamps typical
- Operating Temperature Range: -40°C to 85°C
- Package: 6-pin SOT-23
- Monitoring Accuracy: 1.5%
- Threshold Voltage for Adjustable Inputs: 0.62V ± 1.5%
- Additional features include immunity to supply transients and separate unmonitored supply input
Buy the Maxim Series MAX6700 Triple Voltage Supervisory Circuit: MAX6700UT+T
Order the Maxim MAX6700UT+T online today to ensure reliable voltage monitoring for your system. This high-accuracy supervisor reduces component count and offers adjustable thresholds down to 0.62V, making it ideal for applications requiring stable power supply supervision. With a low supply current of just 35 microamps and a compact 6-pin SOT-23 package, it fits easily into space-constrained designs. Ensure system stability and longevity by choosing this advanced supervisory IC for telecommunications, networking, or portable electronic devices.
Get Maxim MAX6700UT+T today—built for precision and long-lasting durability.
