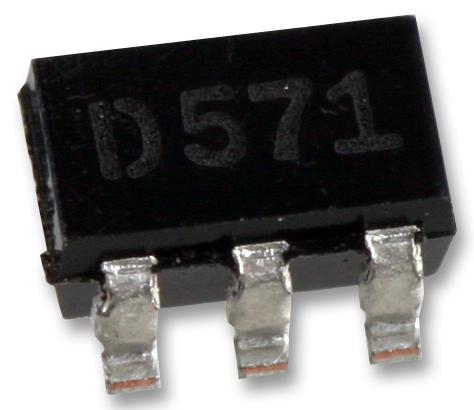

MAXIM INTEGRATED / ANALOG DEVICES MAX6897AAZTT Voltage Monitoring Device
The MAX6897AAZT+T is an ultra-compact, low-power voltage monitor and sequencing device housed in a 6-pin TSOT-23 package. It features an adjustable threshold down to 0.5V via an external resistive divider and provides a configurable delay with an external capacitor to control output assertion timing. Operable from 1.5V to 5.5V, it offers an active-high enable input, open-drain output, and low supply current of 10µA. Suitable for power supply sequencing, reset control, and system monitoring in industrial, automotive, and portable electronics, it ensures reliable operation over the –40°C to +125°C temperature range with 1.8% threshold accuracy.
MAXIM INTEGRATED / ANALOG DEVICES MAX6897AAZTT Voltage Monitoring Device Specifications:
- Supply Voltage Range: 1.5V to 5.5V
- Threshold Voltage: Adjustable down to 0.5V via high-impedance resistive divider
- Response Delay: Programmable with external capacitor, typically from 40µs upwards
- Package: 6-pin TSOT-23
- Operating Temperature: –40°C to +125°C
- Supply Current: Approximately 10µA
- Hysteresis: 5mV
- Operating Threshold Accuracy: ±1.8%
- Threshold Hysteresis: 5mV
- Output Type: Open-Drain
- Enable Input: Active-high logic
- Application suitability: Power supply sequencing, reset management, system supervision in industrial, automotive, and portable devices.
Buy the Maxim Integrated MAX6897AAZT+T Reliable Voltage Monitoring for Industrial Applications
Purchase the Maxim Integrated MAX6897AAZT+T online today—an ultra-compact, low-power voltage supervisory circuit with adjustable threshold, programmable delay, and robust operation from 1.5V to 5.5V. Perfect for power supply sequencing, reset functions, and system supervision in automotive, industrial, and portable electronics. This device features an active-high enable, open-drain output, hysteresis for noise immunity, and operates reliably over –40°C to +125°C with 1.8% accuracy. Easy integration for complex power management applications.
Get Maxim Integrated MAX6897AAZT+T today—built for precise voltage supervision in industrial and portable systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6897AAZTT?
You can click on the BUY or RFQ button to purchase MAX6897AAZTT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6897AAZTT?
You can download the MAX6897AAZTT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6897AAZTT?
MAXIM INTEGRATED / ANALOG DEVICES
