MAXIM INTEGRATED / ANALOG DEVICES MAX6956ATL LED Display Driver
The MAX6956ATL+ is a 28-port LED display driver and I/O expander that communicates via a two-wire interface. Designed for supply voltages ranging from 2.5V to 5.5V, it comes in a compact 40-pin TQFN package. This device provides microcontrollers with up to 28 configurable ports, each of which can be set as a logic input, logic output, or a common-anode LED segment driver. The LED driver ports function as digitally controlled constant-current sinks with 16 adjustable current levels from 1.5mA to 24mA, suitable for both discrete LEDs and common-anode (CA) numeric and alphanumeric LED displays. The general-purpose I/O ports can operate as push-pull outputs capable of sinking 10mA and sourcing 4.5mA, or as Schmitt trigger inputs with optional internal pull-up resistors. Seven ports feature configurable transition detection logic that can generate interrupts on logic level changes. The device supports 16 programmable current steps for each LED, operates over a temperature range of -40°C to 125°C, and uses a 400 Kbps I2C-compatible serial interface. It has a maximum shutdown current of 11µA and supports 16 I2C addresses through a four-level logic scheme using two select pins.
MAXIM INTEGRATED / ANALOG DEVICES MAX6956ATL LED Display Driver Specifications:
- Supply Voltage Range: 2.5V to 5.5V
- Ports: 28 configurable ports (P4-P31)
- LED Current Control: 16 steps from 1.5mA to 24mA
- Port Sink/Source Current: 10mA sink, 4.5mA source
- Supported Interface: 2-wire I2C-compatible, 400kbps
- Temperature Range: -40°C to 125°C
- Power Dissipation: Max 11µA shutdown current
- Package: 40-pin TQFN
- Addressing: 16 I2C addresses via 2 select pins
- Transition Detection Ports: P24-P30
- Internal Pull-ups: Optional for logic inputs
- Configuration Registers: Port modes, current levels, transition detection
- Display Test Mode: All LED ports active for testing
- Control: Register-based configuration and operation

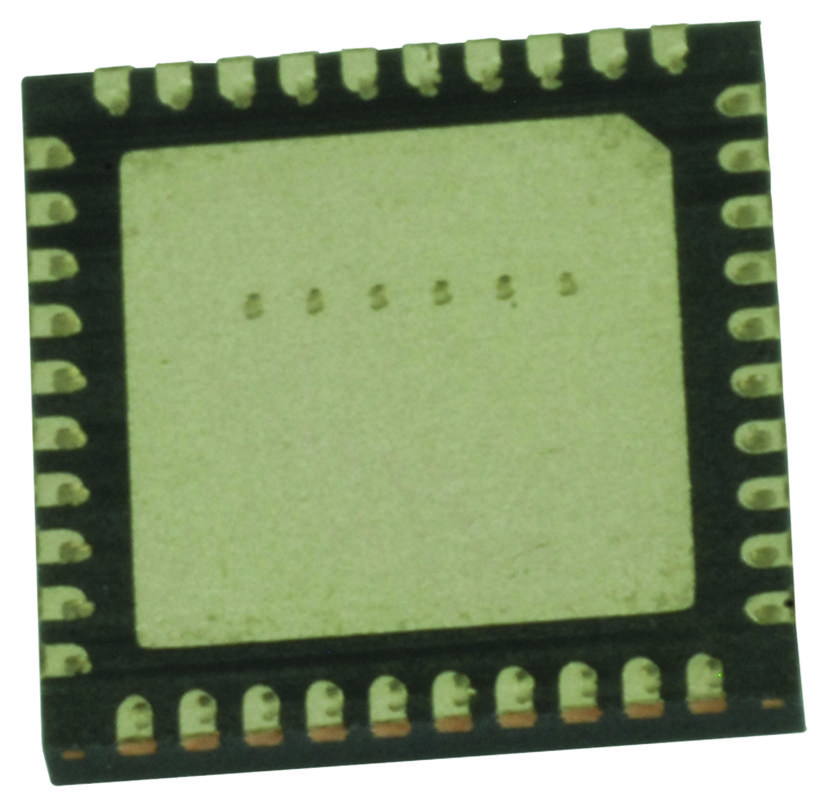

Buy the Buy MAXIM MAX6956ATL+ Part Number MAX6956ATL+ Online
Order the MAXIM MAX6956ATL+ today for a compact, reliable solution that supports up to 28 configurable ports, constant-current LED driving, and transition detection. This 40-pin TQFN device operates over 2.5V to 5.5V, providing flexible configuration for various LED displays and I/O functions. Its support for 16 adjustable current steps, high-speed I2C interface at 400kbps, and ability to operate over -40°C to 125°C ensures excellent performance in industrial, automotive, and consumer applications. Get yours now to enhance your display and control systems with maximum efficiency and durability.
Get MAXIM MAX6956ATL+ today—powerful 28-port LED driver and I/O expander with configurable ports, constant-current control, and transition detection, built for reliability and long-lasting performance.
