MAXIM INTEGRATED / ANALOG DEVICES MAX77504WEVKIT Buck Converter

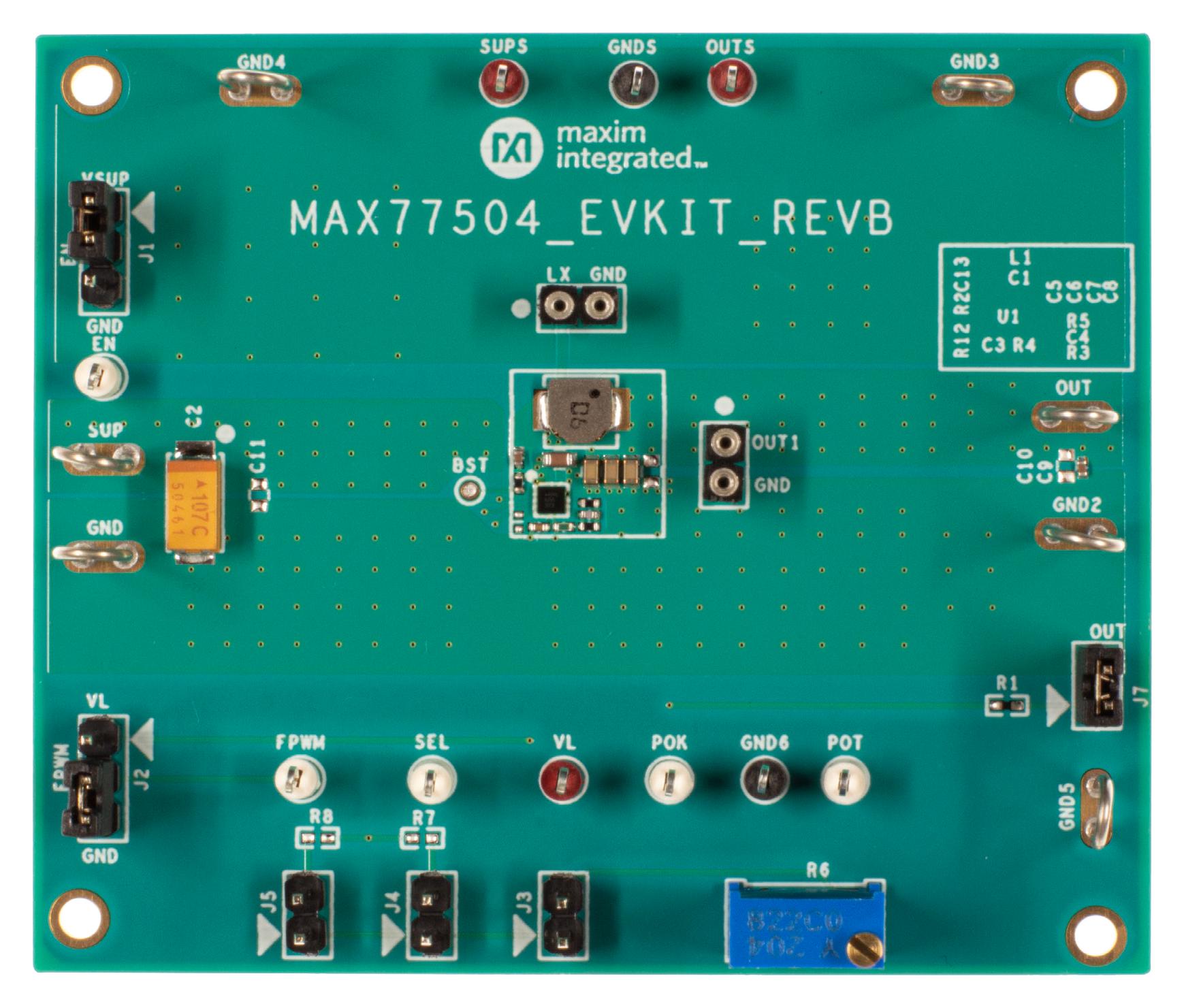

The MAX77504 evaluation kit demonstrates a high-efficiency 3A buck converter capable of input voltages from 2.6V to 14V and output voltages from 0.6V to 6V, configured via feedback resistors. It features adjustable switching frequency between 500kHz and 1.5MHz, with default output at 3.3V. The kit includes test points, sense points, and jumper settings for flexible testing of features like EN, POK, FPWM, and skip mode. Suitable for efficient power regulation in various industrial applications, it simplifies evaluation with a fully assembled and tested board.
MAXIM INTEGRATED / ANALOG DEVICES MAX77504WEVKIT Buck Converter Specifications:
- Input Voltage: 2.6V to 14V
- Output Voltage: 0.6V to 6V
- Default Output Voltage: 3.3V
- Output Current: up to 3A
- Peak Efficiency: 97.6% at 3.7V input and 3.3V output at 300mA load
- Switching Frequency: 500kHz to 1.5MHz configurable via RSEL
- Sense Points for high-accuracy measurements and test points for EN, POK, FPWM, and OUTS
- UVLO Rising: 2.6V, Falling: 2.4V
- Component types: Ceramic capacitors, resistors, inductors, connectors
- Fabricated on a MAX77504 evaluation board for streamlined testing in industrial circuits.
Buy the Maxim Integrated MAX77504 – Reliable Buck Converter for Industrial Applications
Discover the MAX77504 buck converter evaluation kit, engineered for industrial power regulation. It supports input voltages from 2.6V to 14V with configurable output up to 6V and current up to 3A. The board features selectable switching frequency between 500kHz and 1.5MHz, high-accuracy sense points, and test points for EN, POK, and FPWM signals. Fully assembled and tested, it provides a straightforward solution for engineers seeking a reliable, high-performance power conversion device for various industrial and electronics applications.
Order your Maxim Integrated MAX77504WEVKIT high-efficiency buck converter evaluation board today and enhance your industrial power management projects with dependable performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX77504WEVKIT?
You can click on the BUY or RFQ button to purchase MAX77504WEVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX77504WEVKIT?
You can download the MAX77504WEVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX77504WEVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
