MAXIM INTEGRATED / ANALOG DEVICES MAX9406ETJ DisplayPort Level Shifter

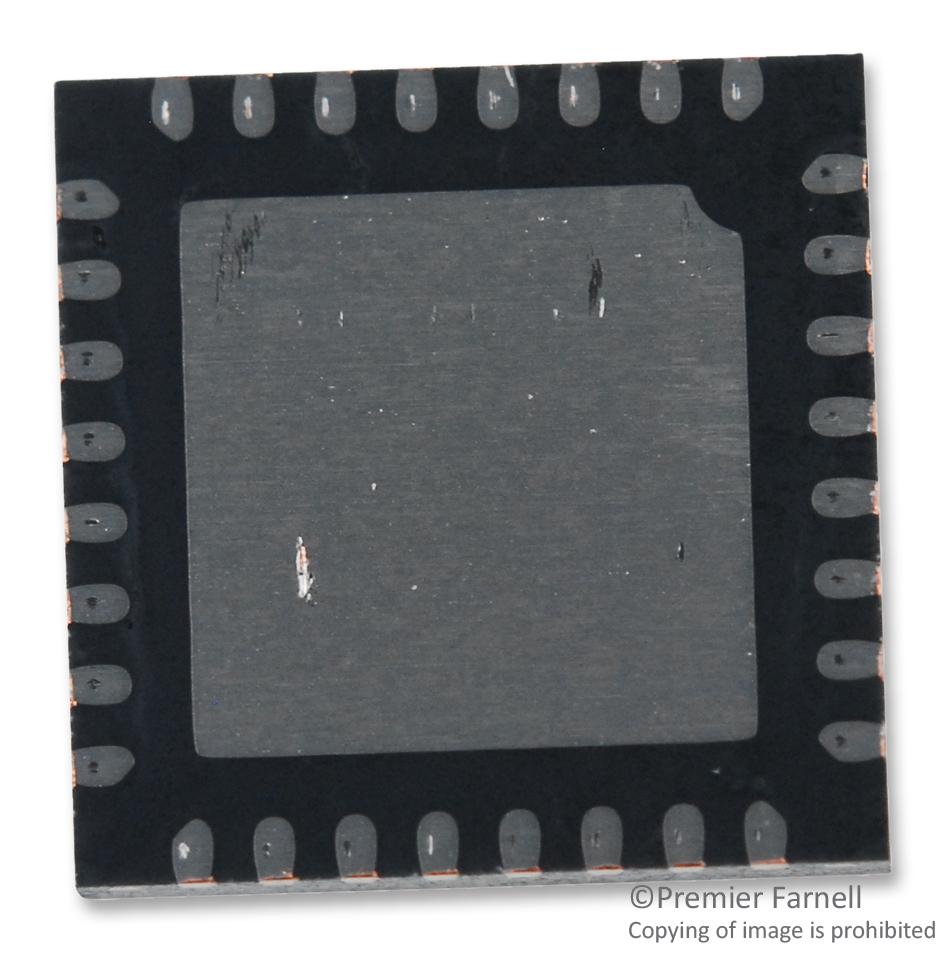

The MAX9406ETJ+ is a high-speed, low-skew display port to DVI/HDMI level shifter housed in a 32-pin TQFN package. It features four differential input channels with CML (Current Mode Logic) translation, enabling high-speed signal conversion from DisplayPort (DP) to HDMI. This device has an ultra-low propagation delay of 350 picoseconds and a channel-to-channel skew of less than 20 picoseconds, supporting data rates of up to 2Gbps. It provides level shifting for HDMI's Display Data Channel (DDC) and hot-plug detection (HPD), converting 5V logic signals to 3.3V logic. Applications include level conversion from DisplayPort to HDMI, data and clock drivers, backplane data distribution, and use in base stations and automated test equipment (ATE). The device operates with a supply voltage range of 3V to 3.6V and an ambient temperature range from -40°C to 85°C. It offers a 500mV differential HDMI output at 2Gbps, low jitter (DJ = 11ps peak-to-peak, RJ = 0.5ps RMS), integrated 50-ohm input terminations, and biasing.

View MAX9406ETJDatasheet [pdf]

Buy the Maxim MAX9406 U–2013 Reliable DisplayPort to HDMI Level Shifter for Industrial Applications

Enhance your high-speed signal conversion with the Maxim MAX9406 display port to HDMI/DVI level shifter. Offering support for data rates up to 2Gbps, ultra-low propagation delay of 350ps, and minimal channel skew, this device ensures reliable high-definition multimedia transmission. Its level shifting for DDC and HPD signals makes it ideal for HDMI interfaces, with integrated 50Ω terminations for optimal performance. Compact 32-pin TQFN package provides excellent thermal management and durability, suitable for professional and industrial electronic systems requiring precise, fast, and stable signal translation.

Get Maxim MAX9406 today—designed for high-speed signal conversion with low skew and delay, perfect for demanding display applications.
