MAXIM INTEGRATED / ANALOG DEVICES MX7226KN CMOS Quad 8-Bit DAC
The MX7226 is a CMOS quad 8-bit digital-to-analog converter (DAC) with four matched voltage outputs, featuring high accuracy, fast settling time, and flexible reference options. It includes internal buffer amplifiers, logic inputs compatible with TTL and CMOS, and can operate from single or dual power supplies. Ideal for applications requiring precise multi-channel voltage output, such as industrial control, test equipment, and waveform generation, the MX7226 offers reliable performance over wide temperature ranges and easy interfacing with microprocessors and controllers.
MAXIM INTEGRATED / ANALOG DEVICES MX7226KN CMOS Quad 8-Bit DAC Specifications:
- Resolution: 8 Bits
- Total Unadjusted Error: 3 LSB
- Differential Nonlinearity: Guaranteed Monotonic within 1 LSB
- Full Scale Error: 2% across temperature
- Reference Input Voltage Range: 2 V to Vpp - 4V
- Reference Input Resistance: 3 kΩ (MX7226)
- Reference Input Capacitance: 100 pF (MX7225), 300 pF (MX7226)
- Channel-to-Channel Isolation: -60 dB at 10kHz, 10Vp.p.
- Output Buffer Slew Rate: > 3 V/μs
- Settling Time to 1/2 LSB: < 4 μs (with 2kΩ load and 100pF capacitor)
- Power Supply Range: +12V to +16.5V (Vpp), GND, and -5V (Vss optional)
- Power Dissipation: 500 mW max
- Input Logic Compatibility: TTL and CMOS
- Operation Temperature: 0°C to +70°C, extended ranges available

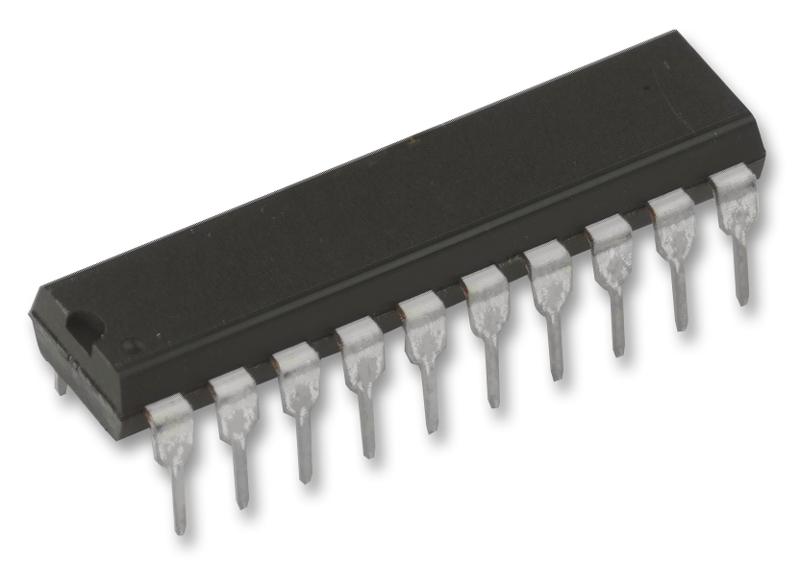

Buy the Buy Maxim CMOS Quad 8-Bit D/A Converter Part Number MX7226KN Online
Order the Maxim MX7226KN online to benefit from fast delivery and seamless integration into your systems. With four high-precision buffered voltage outputs, this CMOS DAC ensures accurate analog signals for industrial control, waveform generation, and test equipment. Designed for wide temperature ranges and TTL/CMOS compatibility, it provides reliable performance with minimal external components. Perfect for engineers and technicians seeking a robust and easy-to-use multi-channel DAC solution, available now for quick deployment in your projects.
Buy Maxim MX7226KN now and experience unmatched reliability and precise four-channel voltage output suitable for industrial control and waveform generation.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MX7226KN?
You can click on the BUY or RFQ button to purchase MX7226KN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MX7226KN?
You can download the MX7226KN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MX7226KN?
MAXIM INTEGRATED / ANALOG DEVICES
