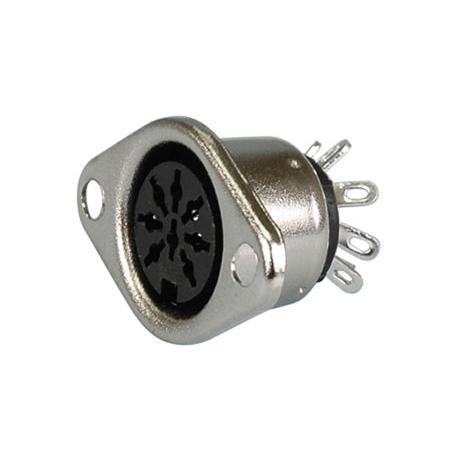

MCM 271620 DIN Socket
This female DIN socket with eight pins is designed for reliable connectivity in electronic systems, featuring flange mounting for secure installation. It offers excellent contact resistance and insulation resistance, with voltage withstand capacity suitable for various industrial applications. The socket's dimensions include a length range of approximately 15.0 mm, and it can handle insertion forces up to 4.0 kg, with withdrawal force between 1 and 3.5 kg. Made from durable materials, it ensures long-lasting performance in demanding environments.
MCM 271620 DIN Socket Specifications:
- Contact Resistance: 20 mΩ Max.
- Insulation Resistance: 300 MΩ Min. at DC 500V
- Voltage Withstanding: AC 1000V for one minute
- Insertion Force: 4.0 kg Max.
- Withdrawal Force: 1 ~ 3.5 kg
- Dimensions: Length approximately 15.0 mm ± 0.2 mm, Width 22.2 mm ± 0.2 mm, Height 29.0 mm ± 0.1 mm
- Material: Durable insulating and conductive components suitable for industrial use
Buy the Buy AVey Flange Mount 8 Pin DIN Socket Part Number 271620 Online
Purchase the AVey DIN Socket with eight pins online today and enjoy reliable, durable, and secure connectivity for your electronic projects. Designed for flange mounting, it provides excellent resistance and stable performance under demanding conditions. Perfect for industrial automation, control systems, and electronic components, this DIN socket ensures long-lasting durability and efficient operation. Fast and easy to order, elevate your wiring solutions with this precision-engineered DIN connector, supporting your tech needs now and in the future.
Get AVey 271620 flange mount 8 pin DIN socket today—designed for secure and reliable electronic connections in industrial applications.
Frequently Asked Questions
Where can I buy MCM 271620?
You can click on the BUY or RFQ button to purchase 271620 from an authorized MCM distributor.
How do I troubleshoot issues or seek technical support for part 271620?
You can download the 271620 datasheet or visit the MCM website for support.
Who is the manufacturer of 271620?
MCM
