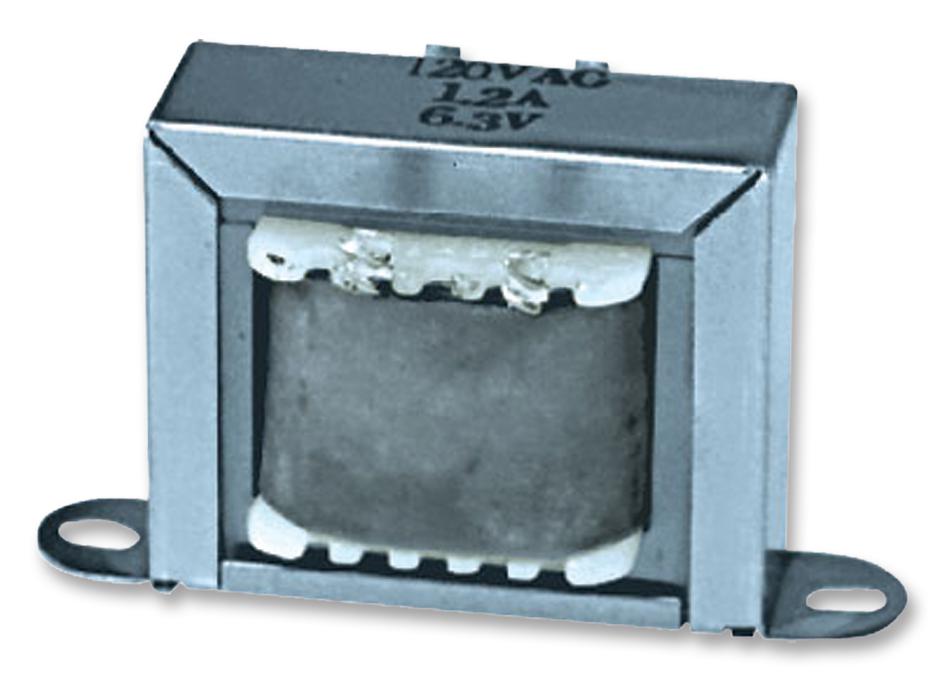

MCM 280010 Isolation Transformer 120V
The MCM 28-0010 isolation transformer is a critical component for applications requiring galvanic isolation between circuits. It provides electrical isolation while stepping down the voltage from 120V AC to 6.3V DC. The transformer's robust design includes features like a Class B insulation system and high-potential testing, ensuring reliable performance in industrial and consumer electronics. It's ideal for applications where safety and voltage isolation are paramount, such as power supplies, lighting systems, and control circuits.
MCM 280010 Isolation Transformer 120V Specifications:
- DC Resistance: 87.8Ω ±20% (1-2), 1.4Ω ±20% (3-5)
- Primary Voltage: 120V AC 60Hz
- Excitation Current: 70mA Max.
- Secondary Voltage: 6.3V DC
- Loaded Current: 1.2A
- Rated Power: 7.56W
- Hi-Pot Test: 1.5kV AC for 1 Minute without breakdown (P-E)
- Insulation Test: 500V DC 100MΩ
- Hi Temperature Rise: <100°C Max. after 4 hours operation
- Humidity Test: 6 hours in 40±2°C ambient temperature at 90~95RH%
- Insulation Class: Class B
Buy the 28-0010 MCM Isolation Transformer 120V | myMectronic
Purchase the MCM 28-0010 Isolation Transformer securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MCM 280010?
You can click on the BUY or RFQ button to purchase 280010 from an authorized MCM distributor.
How do I troubleshoot issues or seek technical support for part 280010?
You can download the 280010 datasheet or visit the MCM website for support.
Who is the manufacturer of 280010?
MCM
