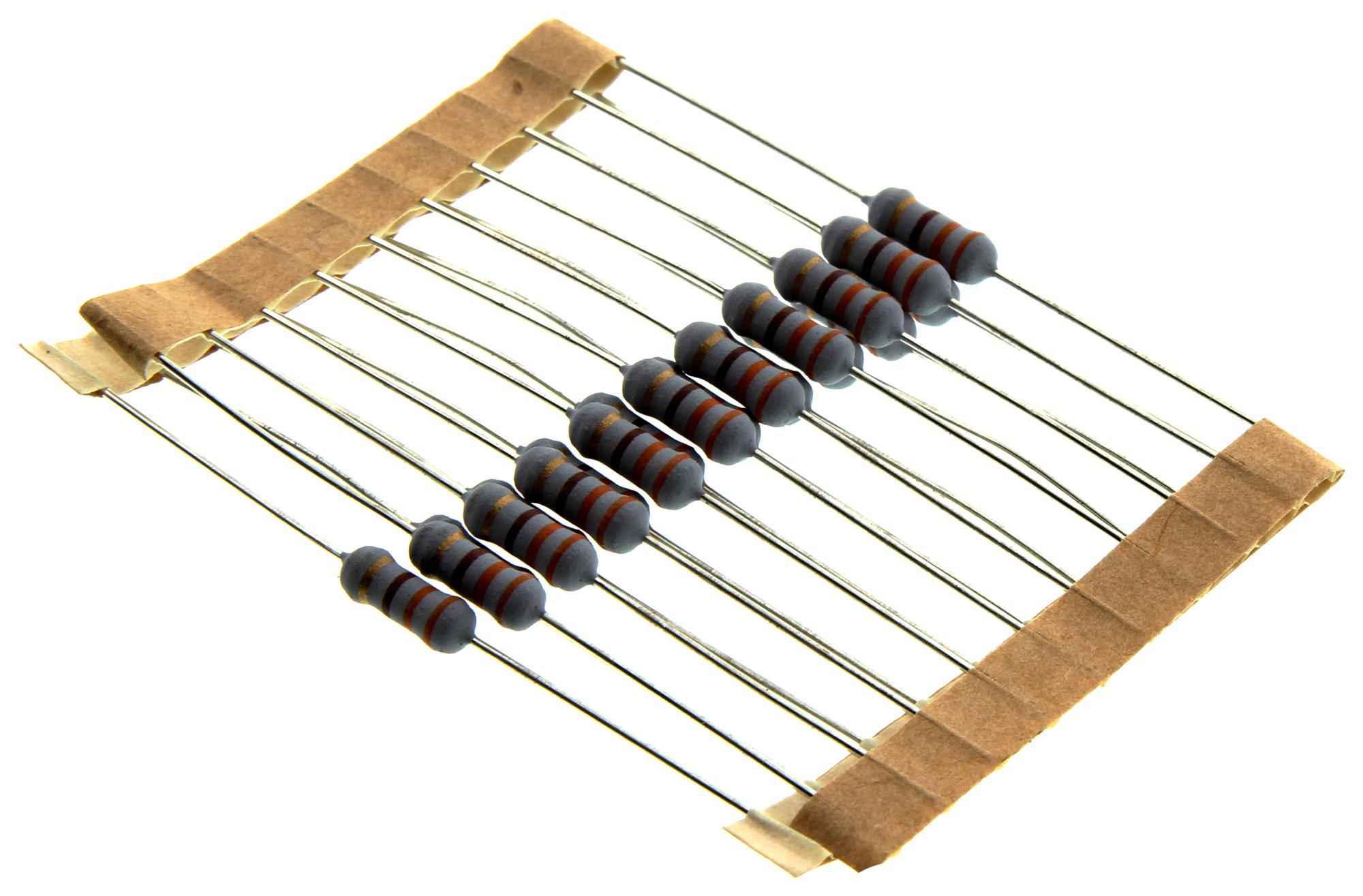

MCM 37330 Metal Oxide Resistors
Metal oxide film resistors are flameproof, RoHS compliant components designed for use in consumer electronics, computers, telecommunications, and control instruments. They feature ceramic rod construction made of imported Forsterite, with terminals firmly connecting to the resistive element for reliable electrical and mechanical performance. Coatings are applied with flameproof paint resistant to 800°C, ensuring durability and resistance to cleaning solvents. Markings include resistance value, tolerance, and manufacturer details. Operating temperature ranges from -55°C to 155°C, with voltage ratings up to 600V. Their resistance temperature coefficient stays within ±300ppm/°C, and they pass multiple environmental and electrical performance tests such as insulation resistance, load life, moisture-proof load life, and soldering heat resistance, ensuring high reliability in demanding applications.
MCM 37330 Metal Oxide Resistors Specifications:
- Resistance Range: 1Ω to 27MΩ
- Rated Power: 0.5W to 1W
- Rated Voltage: Up to 600V
- Temperature Range: -55°C to 155°C
- Resistance Temperature Coefficient: within ±300ppm/°C
- Construction: Ceramic rod made of Forsterite, with firm terminal connection
- Coating: Flameproof paint resistant to 800°C, corrosion-resistant
- Marking: Resistance value, tolerance, type, power, and trade mark
- Insulation Resistance: over 1000MΩ at 100V or 500V megger
- Voltage Withstanding: No physical damage after applying maximum working voltage for 1 min
- Load Life: Resistance change within ±5% after 1000h at 70°C with rated voltage
- Moisture-proof Load Life: Resistance change within ±5% after 500h at 40°C/90-95% humidity
- Solderability: Over 95% coverage after solder dipping at 235°C for 2 sec
- Soldering Heat Resistance: Resistance change within ±1% after hot solder dip at 270°C for 10 sec
- Compliance: RoHS, flameproof
- Application: Consumer electronics, telecommunications, control instruments
Buy the Metal Oxide Film Resistors Series 37330: 27MΩ 1W
Buy Metal Oxide Film Resistors Series 37330 online now and enjoy reliable performance in demanding environments. With flameproof construction, resistance ratings up to 27MΩ, and high temperature tolerance, these resistors are perfect for demanding consumer electronics, control systems, and telecommunications projects. Featuring robust ceramic rod construction, flameproof coatings, and stringent testing for load life, insulation, and moisture resistance, they ensure long-lasting durability. Order today to enhance your electronic assemblies with high-quality, RoHS-compliant resistors that meet industry standards and ensure dependable operation in critical applications.
Order your Metal Oxide Film Resistors Series 37330 today and ensure reliable high-temperature performance for your electronic projects.
