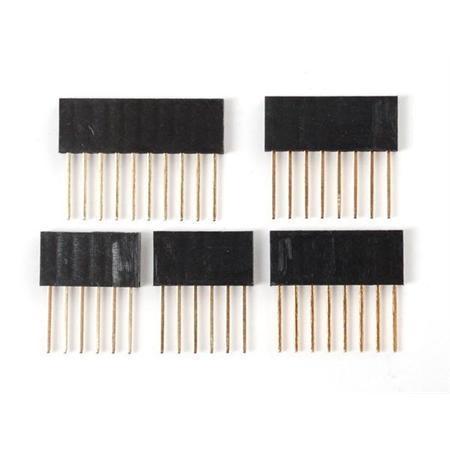

MCM 8315410 PCB Receptacle Connector
The MCM 83-15410 PCB receptacle connector offers a versatile solution for connecting components to single-board computer platforms. Its 2.54mm pitch and 3A current rating ensure reliable performance in diverse applications. Constructed with a PBT, glass-reinforced insulator and gold-flash plated brass contacts, this connector provides excellent insulation resistance and low contact resistance. It's an ideal choice for hobbyists, engineers, and manufacturers seeking a dependable connection solution.
MCM 8315410 PCB Receptacle Connector Specifications:
- Pitch Spacing: 2.54mm
- Rated Current: 3A
- Contact Resistance: 20mΩ Max.
- Initial Insulation Resistance: 5000MΩ Min.
- Operating Temperature: -40°C to +105°C
- Insulator Material: PBT, Glass reinforced
- Insulator Rating: UL94V-0
- Insulator Colour: Black
- Contacts Material: Brass
- Plating: Gold Flash over Nickel
