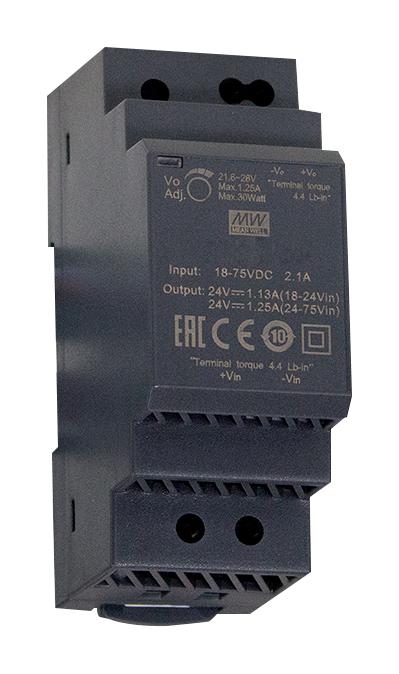

MEAN WELL DDR30L24 Industrial Power Supply
The DDR-30L24 is a 30W DIN rail mountable DC-DC converter designed for industrial control, communication, and automation applications. It features a compact 35mm width, ultra wide input range of 18~75V, wide operating temperature from -40°C to +85°C, and 4KVdc isolation for safety and system integrity. This module offers adjustable output voltage (+10%), low ripple noise, and comprehensive protections including short circuit, overload, over-voltage, reverse polarity, and under-voltage lockout. Its rugged design ensures reliable operation in demanding environments, making it suitable for factory automation, wireless networks, telecom systems, and semiconductor fabrication equipment.
MEAN WELL DDR30L24 Industrial Power Supply Specifications:
- Power Rating: 30W
- Input Voltage Range: 18~75V
- Output Voltage Options: 5V, 12V, 15V, 24V
- Output Current: 6A (for 5V), 2A (for 12V, 15V, 24V)
- Ripple & Noise: Max 75mVp-p
- Efficiency (Typ): 89%
- Operating Temperature: -40°C to +85°C
- Isolation: 4KVdc (reinforced isolation)
- Dimensions: 35mm (W) x 54.5mm (H) x 90mm (D)
- Protections: Short circuit, Overload, Over voltage, Reverse polarity, Under-voltage lockout
- Cooling Method: Free air convection
- Mounting: DIN rail TS-35/7.5 or 15
- MTBF: 483,300 hours at 25°C
- Environmental: Humidity 5-95% RH non-condensing
- Standards: IEC 62968-1, UL508 (design reference), CE EMC compliance
Buy the Buy Mean Well DDR-30L24 Part Number DDR30L24 Online
Purchase the Mean Well DDR-30L24 today for your industrial automation projects. This 30W DIN rail DC-DC converter features wide input voltage range from 18 to 75V, high efficiency up to 89%, and a broad operating temperature from -40°C to +85°C. It provides reinforced 4KVdc isolation, adjustable output voltage (+10%), and comprehensive protections including reverse polarity, over-voltage, and short circuit. Its rugged, compact design ensures reliable, long-lasting operation in demanding environments such as factory automation, communication systems, or semiconductor fabrication facilities. Buy online now for quick, secure delivery.
Get Mean Well DDR-30L24 today—built for industrial automation, reliable performance, and wide operating temperature range.
Frequently Asked Questions
Where can I buy MEAN WELL DDR30L24?
You can click on the BUY or RFQ button to purchase DDR30L24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DDR30L24?
You can download the DDR30L24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DDR30L24?
MEAN WELL
