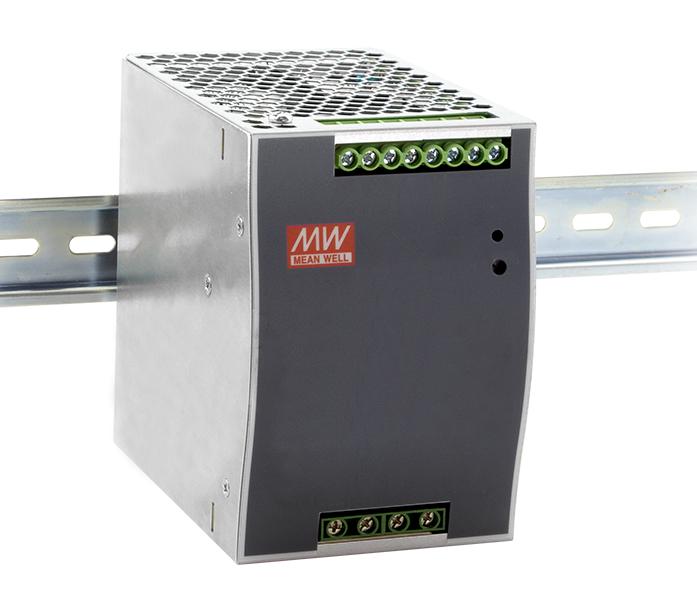

MEAN WELL DDR480D24 Din Rail Power Supply
The DDR-480 series is a 480W DIN Rail DC-DC converter designed for railway and industrial control applications, offering high efficiency, wide temperature range from -40°C to +80°C, and various input/output options. Features include compliance with EN50155 and EN45545-2 standards, 2:1 wide input range, fanless cooling, 4KVdc I/O isolation, adjustable DC output voltage, and protective functions such as overvoltage, overcurrent, and reverse polarity. Suitable for railway, automation, telecom, and security systems, it ensures reliable and safe power conversion.
MEAN WELL DDR480D24 Din Rail Power Supply Specifications:
- Power Rating: 480W
- Input Voltage Range: 16.8~33.6V, 33.6~67.2V, 67.2~154V
- Output Voltages: 12V, 24V, 48V
- Rated Currents: 20A (12V), 10A (24V), 10A (48V)
- Peak Load Capability: 150% for 5 seconds
- Efficiency: Up to 92%
- Isolation Voltage: 4KVdc (input/output)
- Operating Temperature: -40°C to +80°C
- Protection: Short circuit, Overload, Over voltage, Over temperature, Reverse polarity
- Dimensions: 85.5mm (W) x 125.2mm (H) x 128.5mm (D)
- Cooling: Fanless air convection
- MTBF: 280,000 hours
- Standards Compliance: UL62368-1, IEC 62368-1, EN50155, EN45545-2
Buy the Buy Mean Well DDR Series 480W DIN Rail Power Supply Part Number DDR-480D24 Online
Order the DDR Series 480W DIN Rail Power Supply online today to ensure high-performance energy transfer in railway, automation, and communication systems. With wide temperature operation, full protective features, and compliance to industry standards like EN50155 and EN45545-2, this power module guarantees robust and safe power conversion. Easy DIN rail installation saves space and simplifies maintenance. ideal for critical industrial, railway, telecom, and control system applications needing reliable, efficient, and safe power regulation for demanding environments.
Buy Mean Well DDR-480D24 now and experience unmatched reliability and peak efficiency for industrial control and railway automation.
Frequently Asked Questions
Where can I buy MEAN WELL DDR480D24?
You can click on the BUY or RFQ button to purchase DDR480D24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DDR480D24?
You can download the DDR480D24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DDR480D24?
MEAN WELL
