MEAN WELL DKMW06G12 DC-DC Converter

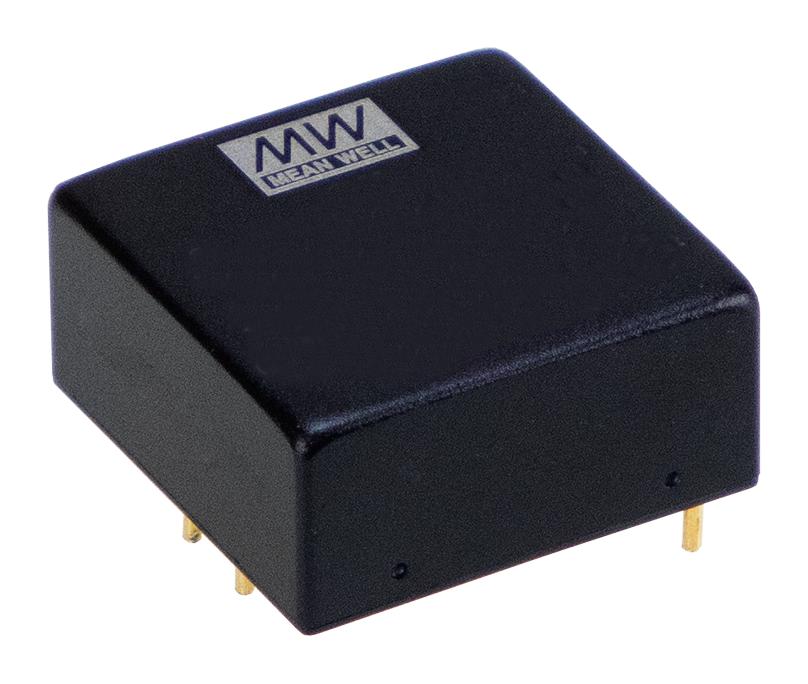

The DKMW06G12 is a high-efficiency, 6W isolated and regulated DC-DC converter in a compact 1x1 inch DIP package, suitable for industrial, telecom, and control systems. It features an input voltage range of 18~75V, output of 12V with a maximum load of 250mA, and offers 1.5KVDC I/O isolation, compliance to EN55032 Class B radiated emissions without external components, and protections against short circuits, overloads, and overvoltage. Operating from -40°C to +85°C, it delivers reliable power with up to 86% efficiency and robust safety standards.
MEAN WELL DKMW06G12 DC-DC Converter Specifications:
- Input Voltage Range: 18~75V
- Output Voltage: 12V
- Output Current: up to 250mA
- Power: 6W
- Efficiency: Up to 86%
- Isolation Voltage: 1.5KVDC I/O
- Operating Temperature: -40°C to +85°C
- Ripple & Noise: 85mVp-p (max.)
- Line Regulation: 0.2%
- Load Regulation: Main 1%, Side 1.5%
- Switching Frequency: 300KHz
- Soldering Temperature: 260°C for 1-3 seconds
- Dimensions: 25.4*25.4*11.7mm
- Case Material: Black coated copper
- Standards: UL60950-1, EAC TP TC 004
- Protection: Short circuit (automatic recovery), overload, overvoltage
- Humidity Range: 5% to 95% RH
- Temperature Coefficient: 0.03%/°C
Buy the Mean Well Series DKMW06G12 DC-DC Converter: 12V Output, 18-75V Input
Enhance your system's power stability with the reliable and efficient DKMW06G12 DC-DC converter. Designed for industrial, telecommunications, and control applications, this 6W module provides a 12V output, wide input voltage range of 18 to 75V, and superior isolation of 1.5KVDC. With operating temperatures from -40°C to +85°C, high efficiency up to 86%, and comprehensive protections including short circuit, overload, and overvoltage, it ensures dependable performance in demanding environments. Purchase online today to secure a durable power supply for your critical projects.
Order your Mean Well Series DKMW06G12 high-efficiency DC-DC converter today and ensure reliable power for your industrial and telecom systems.
Frequently Asked Questions
Where can I buy MEAN WELL DKMW06G12?
You can click on the BUY or RFQ button to purchase DKMW06G12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DKMW06G12?
You can download the DKMW06G12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DKMW06G12?
MEAN WELL
