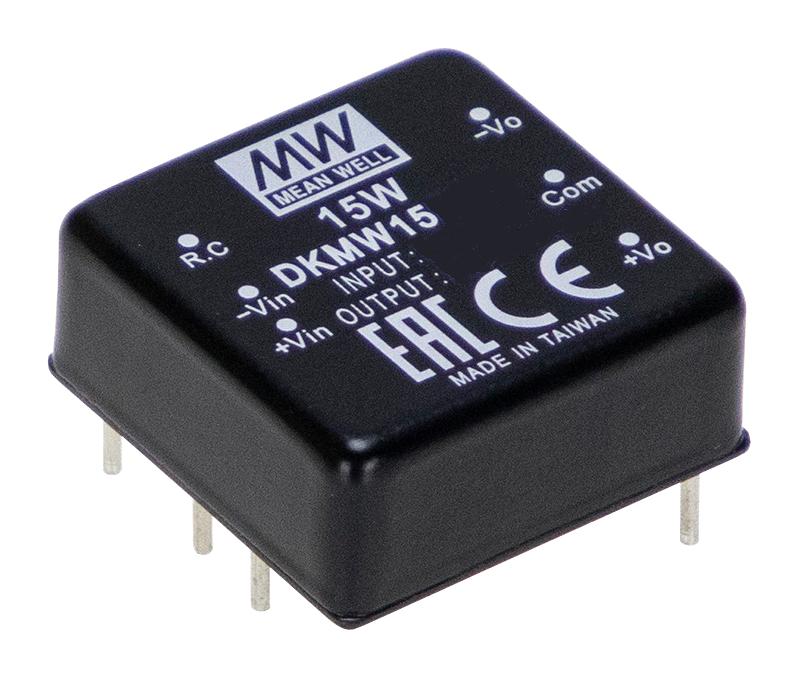

MEAN WELL DKMW15G12 DC-DC Converter
The DKMW15G12 series is a 15W isolated DC-DC converter in a compact 1x1-inch package, featuring ultrawide 18-75V input range, high efficiency up to 89%, and a wide operating temperature from -40°C to +85°C. It provides 3KVDC line-to-line isolation, continuous short circuit and overload protection, and complies with EN55032 Class A radiated emission standards without external components. Suitable for industrial control, telecom systems, data communication, and wireless network applications, it delivers reliable power regulation with dual or single outputs and rugged protections for demanding environments.
MEAN WELL DKMW15G12 DC-DC Converter Specifications:
- Input Voltage Range: F: 9~36Vdc, G: 18~75Vdc
- Output Power: 10W for 3.3V, 15W for others
- Output Voltages: 3.3V/5V/12V/15V (single), +5V/+12V/+15V (dual)
- Efficiency: Up to 89%
- Isolation Voltage: 3KVDC line-to-line
- Operating Temperature: -40°C to +85°C
- Ripple & Noise: 50mVp-p max
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Protection: Short circuit, Overload, Over voltage, Under voltage lockout
- Switching Frequency: 300kHz
- Dimensions: 25.4mm x 25.4mm x 10.2mm (1 x 1 x 0.4 inches)
- Case Material: Black coated metal with non-conductive base
- Cooling: Free-air convection
- Vibration: 10~500Hz, 2G, 10 min along X,Y,Z axes
Buy the Mean Well DKMW15G12 – Reliable Power Converter for Industrial Applications
Buy the DKMW15G12 series online today and get a compact, high-performance isolated DC-DC converter ideal for industrial, telecom, and automation systems. With ultrawide input, up to 89% efficiency, and safe protections, this converter ensures reliable power regulation. Its rugged design withstands wide temperature ranges from -40°C to +85°C, providing consistent operation in demanding environments. Easy to integrate with multiple output options—single and dual—this power module is a dependable choice for your control and communication projects. Purchase now to benefit from fast delivery and trusted quality.
Order your Mean Well DKMW15G12 series high-efficiency DC-DC converter today and ensure stable power supply with rugged protections for industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL DKMW15G12?
You can click on the BUY or RFQ button to purchase DKMW15G12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DKMW15G12?
You can download the DKMW15G12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DKMW15G12?
MEAN WELL
