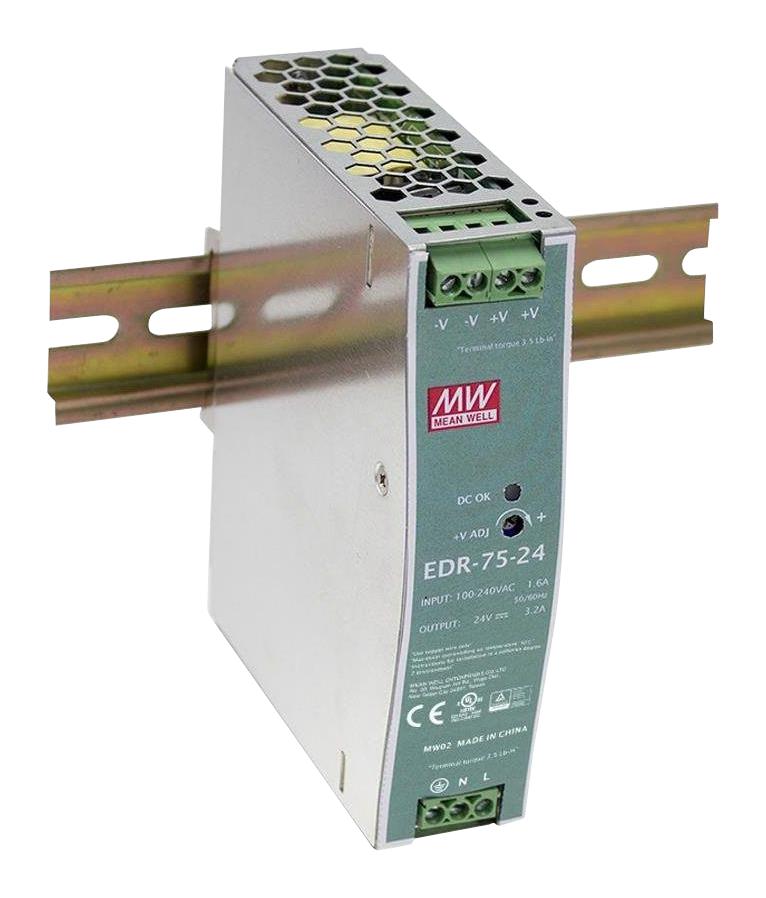

MEAN WELL EDR7524 Industrial DIN Rail Power Supply
The EDR-75 series is a compact, 75W DIN rail power supply suitable for industrial control systems and automation processes. It features universal AC input (90VAC to 264VAC), high efficiency up to 88.5%, and full protection including short circuit, overvoltage, overload, and over temperature. Designed with a metal housing for enhanced heat dissipation, it operates efficiently between -20°C and 60°C. Certified under UL 508 and TUV EN60950-1, this power supply is ideal for factory automation, semiconductor fabrication, and electro-mechanical applications, ensuring reliable operation in harsh environments.
MEAN WELL EDR7524 Industrial DIN Rail Power Supply Specifications:
- Power: 75W
- Input Voltage: 90VAC to 264VAC, 127VDC to 370VDC
- Output Voltage: 12V, 24V, 48V
- Rated Current: 6.3A, 3.2A, 1.6A respectively
- Ripple & Noise: Max. 80mVp-p, 120mVp-p, 150mVp-p
- Efficiency: Up to 88.5%
- Dimensions: 125.2mm (W) x 102mm (H) x 39mm (D)
- Temperature Range: -20°C to 60°C
- Protection: Short circuit, Overload (105-130%), Over voltage, Over temperature
- Certifications: UL 508, TUV EN60950-1, EN61000-6-2
- Operating Humidity: 20-95% RH non-condensing
- Mechanical Mounting: TS-35/7.5 or TS-35/15 DIN rail
- MTBF: 506,600 hours
Buy the Mean Well 75W Series - Reliable DIN Rail Power Supply for Industrial Applications
Upgrade your industrial control systems with the robust and efficient 75W DIN rail power supply. Designed for seamless mounting on TS-35/7.5 or TS-35/15 rails, it offers high efficiency up to 88.5%, comprehensive protections, and reliable operation across a wide temperature range. Certified by UL and TUV, it ensures safety and compliance. Perfect for factory automation, semiconductor equipment, and electro-mechanical systems, this power supply guarantees stable power delivery and long service life for demanding industrial environments.
Buy EDR-75 series power supply now and experience unmatched reliability and performance in industrial automation and control systems.
Frequently Asked Questions
Where can I buy MEAN WELL EDR7524?
You can click on the BUY or RFQ button to purchase EDR7524 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EDR7524?
You can download the EDR7524 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EDR7524?
MEAN WELL
