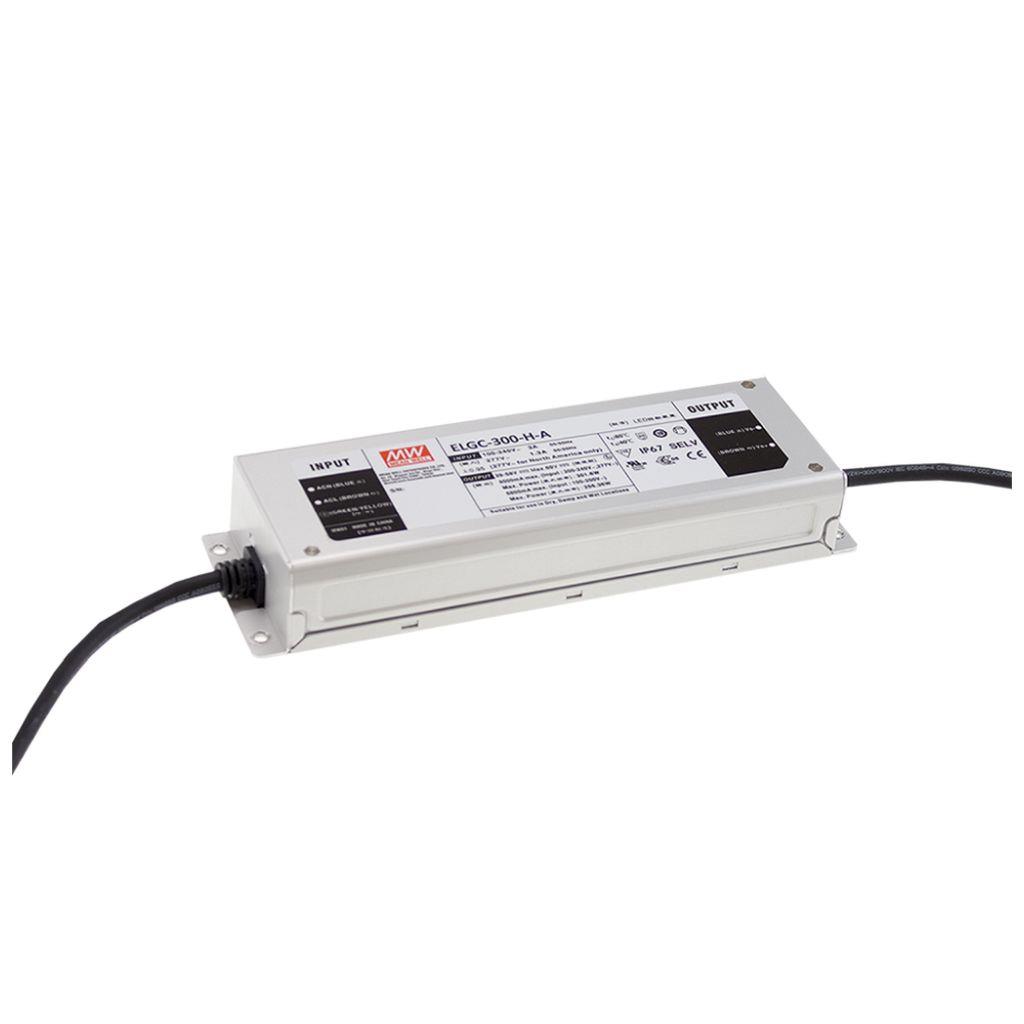

MEAN WELL ELGC300HA 300W LED Driver
The MEAN WELL ELGC-300-H-A series is a 300W LED AC/DC driver designed for constant power mode and high voltage output. It operates from 100~305VAC and offers models with different rated current ranging between 1300mA and 8000mA. With high efficiency up to 94.5%, the series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection allows this series to fit both indoor and outdoor applications. It is equipped with various function options, such as dimming methodologies, to provide the optimal design flexibility for LED lighting system.
MEAN WELL ELGC300HA 300W LED Driver Specifications:
- Model: ELGC-300-H-A
- Rated Power: 256W
- Input Voltage Range: 100 ~ 305VAC
- Output Voltage Range: 121 ~ 431VDC
- Rated Current: 650~2000mA
- Full Power Current Range: 1300~3400mA
- Efficiency: 94.5%
- Power Factor: 0.97 (115VAC)
- THD: <10%
- Current Ripple: 5.0% max.
- Isolation Voltage: I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
- Working Temperature: -40 ~ +85℃
- Storage Temperature: -40 ~ +80℃
- MTBF: 1637.5K hrs
- Dimensions: 246*77*39.5mm
- IP Rating: IP67
- Safety Standards: Compliance to BS EN/EN61347-1, BS EN/EN61347-2-13
Buy the ELGC-300-H-A MEAN WELL 300W LED Driver | myMectronic
Purchase the MEAN WELL ELGC-300-H-A LED Driver securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL ELGC300HA?
You can click on the BUY or RFQ button to purchase ELGC300HA from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part ELGC300HA?
You can download the ELGC300HA datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of ELGC300HA?
MEAN WELL
