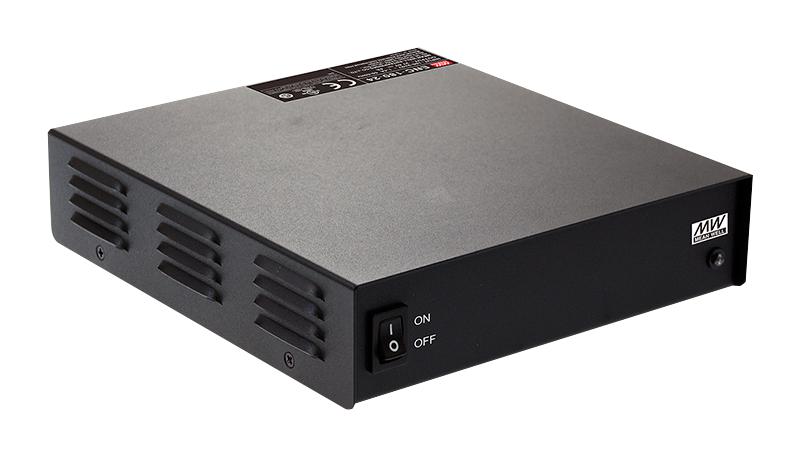

MEAN WELL ENC36048 battery charger
ENC-360 is a high-efficiency, programmable 360W battery charger suitable for lead-acid and lithium-ion batteries, including gel, flooded, AGM, and Li-ion types. It features a built-in three-stage charging curve with programmable default settings, ensuring optimal charging for various battery chemistries. Designed for rugged environments, it operates efficiently between -30°C to +70°C using free air convection and includes protections against short circuits, overvoltage, overtemperature, reverse polarity, and undervoltage. Its universal AC input and compact desktop design make it ideal for backup power, electric scooters, and surveillance systems, supported by a 3-year warranty.
MEAN WELL ENC36048 battery charger Specifications:
- Input Voltage: 90-264VAC, 127-370VDC
- Power: 360W
- Output Voltage (Vboost): 14.4V, 28.8V, 57.6V (default), programmable
- Float Voltage: 13.8V, 27.6V, 55.2V (default)
- Output Current: 6A (for 48V model), 12A (for 24V model), 24A (for 12V model)
- Charge Voltage Range: 9-15V (12V), 18-30V (24V), 36-60V (48V)
- Protection: Short circuit, Over voltage, Over temperature, Reverse polarity, Undervoltage
- Operating Temperature: -30°C to +70°C
- Efficiency: 91-94%
- Dimensions: 192mm x 45.5mm x 178mm
- Weight: Approximately 1.5Kg
- Certifications: UL60950-1, IEC60950-1, BSMI CNS14336-1
- Cooling: Fanless, convection cooled
- Working Humidity: 20-95% RH non-condensing
- Working Temperature: -30°C to +70°C
- Vibration Resistance: 10-500Hz, 2G
- MTBF: 438.7K hours
Buy the Mean Well Series 360W Battery Charger: ENC36048
Purchase the Mean Well ENC36048 battery charger online today and ensure efficient, reliable power for your lead-acid or Li-ion batteries. Featuring a three-stage programmable charge curve, broad compatibility for gel, flooded, AGM, and lithium batteries, and comprehensive protection features, this rugged desktop charger is ideal for backup systems, electric scooters, and surveillance applications. Its fanless, convection-cooled design guarantees quiet operation and durability across a wide temperature range, backed by a 3-year warranty for peace of mind and optimal performance.
Buy Mean Well ENC36048 now and experience unmatched reliability and performance in battery charging applications.
