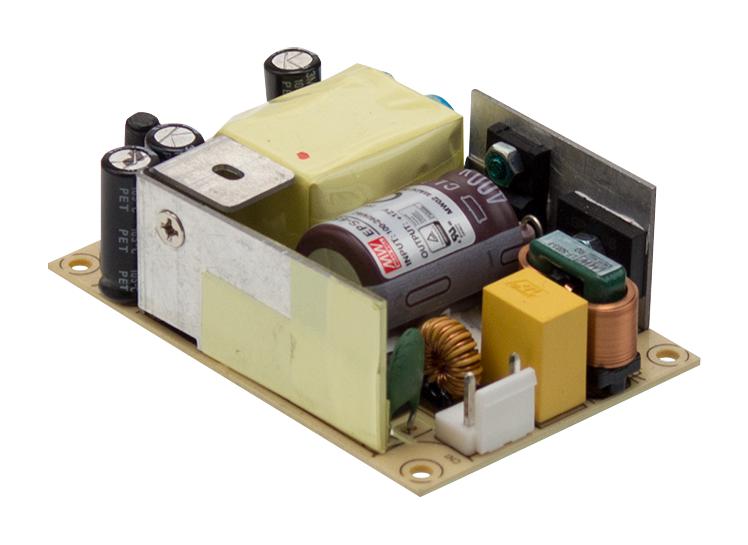

MEAN WELL EPS45S24 Industrial Power Supply
EPS-45S series is a compact, 45W industrial switching power supply with high efficiency up to 91%, low no-load power consumption below 0.1W, and wide input voltage range of 80~264 VAC. Its 3 x 2-inch footprint supports 1U applications, making it suitable for factory automation, industrial equipment, and handheld electronic devices. It offers multiple output voltages from 3.3V to 48V, features protections against short circuit, overload, and overvoltage, and operates in temperatures from -30°C to +70°C with a 3-year warranty, ideal for harsh environments.
MEAN WELL EPS45S24 Industrial Power Supply Specifications:
- Power: 45W
- Input Voltage: 80~264 VAC
- Output Voltages: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 48V
- Output Current: 0~8.8A depending on model
- Efficiency: up to 91%
- No Load Power: <0.1W
- Dimensions: 76.2mm x 50.8mm x 24mm (3" x 2" x 0.945")
- Temperature Range: -30°C to +70°C
- Protections: Short circuit, Overload, Overvoltage
- Operating Altitude: Up to 5000 meters
- Cooling: Free air convection
- Certifications: UL60950-1, TUV EN60950-1
- Safety & Isolation: 2xMOPP, 3KV AC withstand voltage
- MTBF: 726,200 hours at 25°C
Buy the Buy Mean Well EPS-45S Part Number EPS45S24 Online
Get the reliable and efficient industrial power supply, suitable for factory automation, embedded systems, and electrical equipment. The EPS-45S series provides 45W power output across various voltages with high efficiency up to 91% and minimal no-load power consumption below 0.1W. It features a compact 3" x 2" form factor, wide operating temperature from -30°C to +70°C, and protections against short circuit, overload, and overvoltage. Ideal for harsh environments, it comes with a 3-year warranty and global safety certifications, ensuring durability and safety in industrial applications.
Order your Mean Well EPS-45S 45W industrial power supply today and ensure reliable, high-efficiency power for your automation projects.
Frequently Asked Questions
Where can I buy MEAN WELL EPS45S24?
You can click on the BUY or RFQ button to purchase EPS45S24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPS45S24?
You can download the EPS45S24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPS45S24?
MEAN WELL
