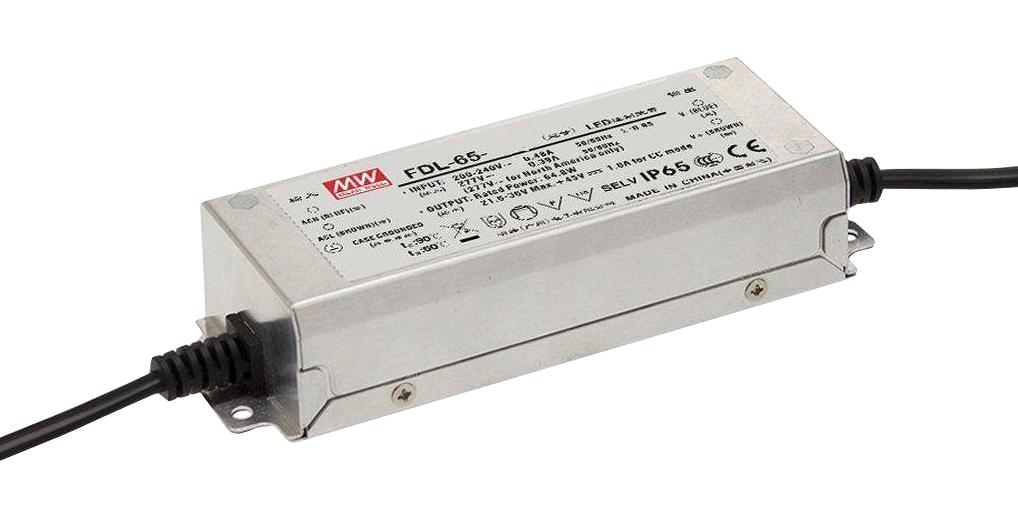

MEAN WELL FDL651550 LED Driver
The FDL-65 series is a 65W high-efficiency LED driver designed for indoor and outdoor LED lighting applications such as flood, decorative, and architectural lighting. Operating from 180 to 295VAC, it features constant current output with adjustable current settings, metal housing, and IP65 ingress protection. Capable of operating from -40°C to +90°C, the driver includes active PFC, low no-load power consumption, and a fanless design for quiet operation. Its rugged construction, wide voltage range, and reliable performance make it ideal for professional LED lighting systems.
MEAN WELL FDL651550 LED Driver Specifications:
- Rated Power: 65.1W (1550mA) / 64.8W (1800mA)
- Output Voltage: 25.2 ~ 42V (1550mA), 21.6 ~ 36V (1800mA)
- Open Circuit Voltage: 50V maximum
- Input Voltage Range: 180 ~ 295VAC / 254 ~ 417VDC
- Frequency Range: 47 ~ 63Hz
- Efficiency: up to 90%
- Power Factor: > 0.95
- THD: < 20% at load, 230VAC
- Input Current: 0.48A / 230VAC, 0.39A / 277VAC
- Inrush Current: 11A @ 230VAC (cold start)
- Leakage Current: < 0.75mA / 277VAC
- No-load Power Consumption: < 0.5W
- Working Temp.: -40°C to +90°C
- Protection: Over Voltage, Over Temperature, Short Circuit
- Dimensions: 151 x 53 x 31.5mm
- Certifications: UL, EN, GB, EAC, IP65
- Operating Humidity: 20% to 95% RH non-condensing
Buy the Mean Well 65W – Reliable LED Driver for Industrial Applications
Enhance your LED lighting setups with the reliable and efficient FDL-65 series LED driver. Designed for versatile indoor and outdoor use, it features adjustable current, IP65 ingress protection, and exceptional thermal performance. With high efficiency reaching 90%, low power consumption when idle, and a metal housing for durability, this driver supports diverse LED applications including flood, decorative, and architectural lighting. Its extended temperature range ensures consistent performance in extreme environments, making it an excellent investment for professional lighting systems needing dependable power delivery.
Order your Mean Well Series FDL-65 65W LED driver today and ensure reliable LED lighting performance for your outdoor or indoor projects.
Frequently Asked Questions
Where can I buy MEAN WELL FDL651550?
You can click on the BUY or RFQ button to purchase FDL651550 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part FDL651550?
You can download the FDL651550 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of FDL651550?
MEAN WELL
