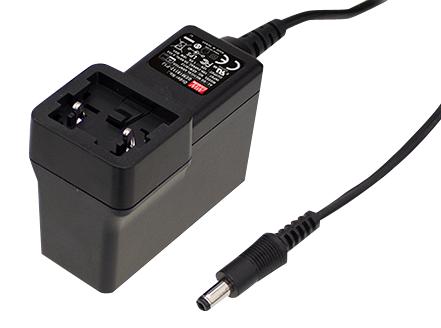

MEAN WELL GEM40I18P1J Medical Power Adapter
GEM40I18 is a highly reliable 40W medical power adapter designed for medical electronics, with a compact, wall-mounted style and interchangeable AC plugs fitting global standards. It accepts input voltages from 80VAC to 264VAC, ensuring versatile use worldwide. The circuitry meets international safety standards with 2*MOPP and ultra-low leakage current (<100A), making it suitable for contact with patients. With efficiency up to 90.5% and low no-load power consumption below 0.1W, it complies with energy regulations including US EISA 2007/DoE Level VI and EU ErP, ensuring energy savings and safety for medical devices.
MEAN WELL GEM40I18P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC
- Output Power: 40W
- Output Voltage: 18V
- Rated Current: 2.22A
- Ripple & Noise: 120mVp-p
- Voltage Tolerance: ±2.0%
- Line Regulation: ±1.0%
- Load Regulation: ±2.0%
- Efficiency: 88-90.5%
- No Load Power Consumption: <0.1W
- Leakage Current: <100A
- Frequency Range: 47-63Hz
- Protections: Short Circuit, Overload, Over Voltage
- Operating Temperature: -25°C to +70°C
- Safety Standards: UL60601-1, EN60601-1
- Case Material: Flame retardant plastic, 94V-0
- Dimensions: ~94V-0 plastic case, size varies with plug type
- Warranty: 3 years
Buy the Buy GEM Series Medical Adapter Part Number GEM40I18P1J Online
Purchase the GEM series medical power adapter GEM40I18P1J online today and benefit from a highly reliable, energy-efficient device suitable for various medical applications globally. Featuring interchangeable plugs, it caters to international standards with input voltage 80VAC to 264VAC, and outputs 18V at 2.22A. The adapter complies with safety regulations, offers low leakage current, high efficiency up to 90.5%, and low no-load power consumption below 0.1W. Ideal for medical devices like blood glucose meters, blood pressure monitors, and portable health equipment, ensuring safe, stable power supply with 3-year warranty.
Buy GEM series medical power adapter GEM40I18P1J now and experience unmatched reliability, low leakage current, and energy-efficient operation for medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL GEM40I18P1J?
You can click on the BUY or RFQ button to purchase GEM40I18P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GEM40I18P1J?
You can download the GEM40I18P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GEM40I18P1J?
MEAN WELL
